Description

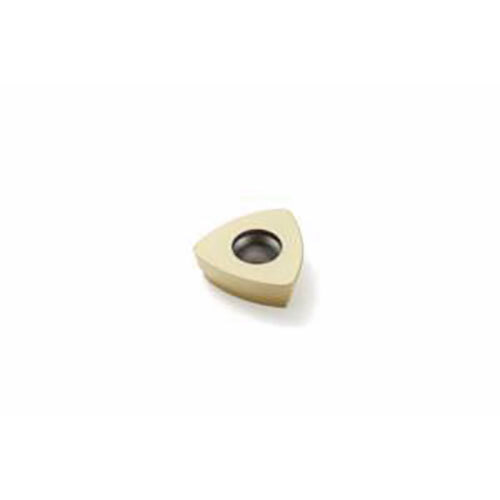

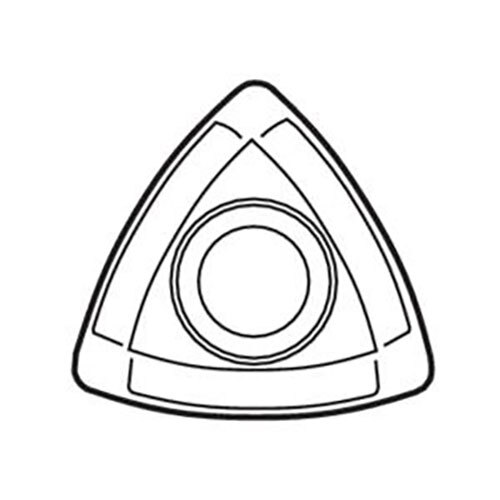

High Feed Milling Insert F15M Grade (MD04 Geometry)

  • F15M grade.
  • MD04 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-080 Insert Seat Size Code (SSC).

About F15M Grade

  • PVD coated grade.
  • The hard and wear-resistant grade for milling in aluminium and non-ferrous alloys.
  • Excellent grade, in combination with protected cutting edges, for high-speed machining in hardened steel.
  • (Ti, Al) N – TiN.

Specifications

  • AIMS SKU A0121830
  • Brand Seco
  • Model Number 00039909
  • Barcode Number 39909000001005
  • Designation 218.19-080T-MD04,F15M
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 2.38
  • Corner Radius (RE) mm 0.4
  • Inscribed Circle Diameter (IC) mm 5.5
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 8
  • Type Milling Insert
  • Grade F15M
  • Insert Seat Size Code (SSC) 218.19-080
SKU: A0121830

Seco High Feed Milling Single Sided Insert 8 x 0.4 x 2.38mm F15M Grade (MD04 Geometry) 218.19-080T-MD04,F15M Pack of 10

High Feed Milling Insert F15M Grade (MD04 Geometry)

$259.30
