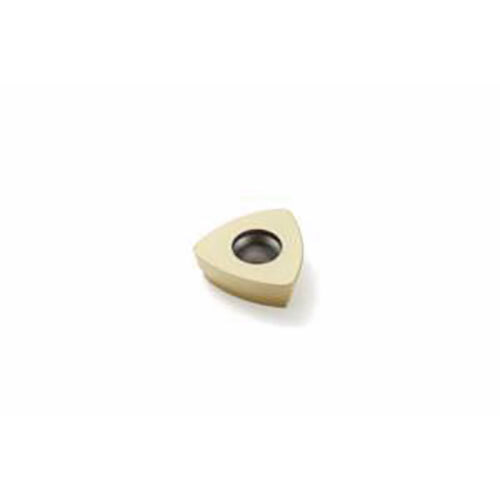

High Feed Milling Insert F30M Grade (MD08 Geometry)

  • F30M grade.
  • MD08 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-125 Insert Seat Size Code (SSC).

About F30M Grade

  • PVD coated grade.
  • Basic grade for Minimaster inserts and thread milling inserts.
  • Also suitable for milling stainless steel, hardened steel and superalloys.
  • (Ti, Al) N – TiN.

Specifications

  • AIMS SKU A0121837
  • Brand Seco
  • Model Number 74079718
  • Barcode Number 79718740001002
  • Designation 218.19-125T-T3-MD08,F30M
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 3.97
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 8.9
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 12.5
  • Type Milling Insert
  • Grade F30M
  • Insert Seat Size Code (SSC) 218.19-125
SKU: A0121837

Seco High Feed Milling Single Sided Insert 12.5 x 0.8 x 3.97mm F30M Grade (MD08 Geometry) 218.19-125T-T3-MD08,F30M Pack of 10

High Feed Milling Insert F30M Grade (MD08 Geometry)

$295.54
