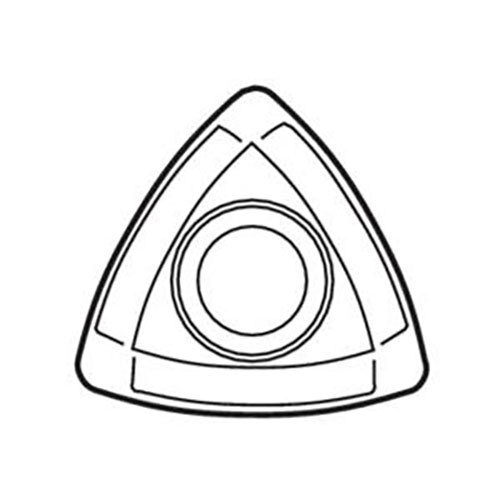

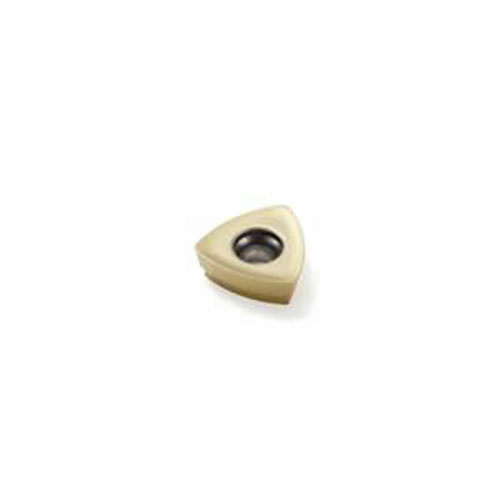

High Feed Milling Insert F40M Grade (M08 Geometry)

  • F40M grade.
  • M08 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-160 Insert Seat Size Code (SSC).

About F40M Grade

  • PVD coated grade.
  • The PVD-coated grade for fine to medium rough milling.
  • First choice for milling with small feeds and/or low cutting speeds.
  • Excellent for milling when there is a risk of vibrations and when coolant is used.
  • Recommended for machining superalloys.
  • (Ti, Al) N – TiN.

Specifications

  • AIMS SKU A0121859
  • Brand Seco
  • Model Number 00023605
  • Barcode Number 23605000001005
  • Designation 218.19-160T-04-M08,F40M
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 4.76
  • Corner Radius (RE) mm 1.2
  • Inscribed Circle Diameter (IC) mm 11.18
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 16
  • Type Milling Insert
  • Grade F40M
  • Insert Seat Size Code (SSC) 218.19-160
SKU: A0121859

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm F40M Grade (M08 Geometry) 218.19-160T-04-M08,F40M Pack of 10

High Feed Milling Insert F40M Grade (M08 Geometry)

$365.12
