Description

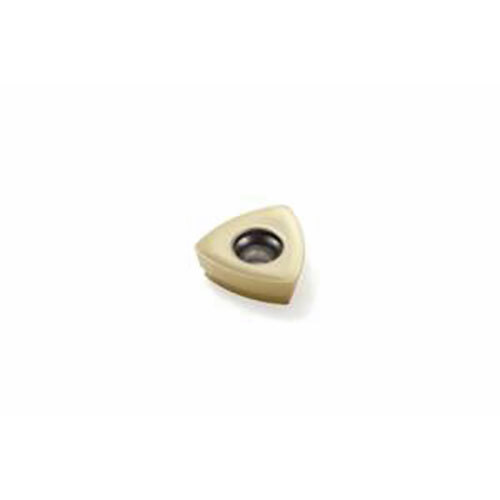

High Feed Milling Insert MP3000 Grade (M06 Geometry)

  • MP3000 grade.
  • M06 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-100 Insert Seat Size Code (SSC).

About MP3000 Grade

  • PVD coated grade.
  • The highly wear-resistant optimized grade for milling in steel.

Specifications

  • AIMS SKU A0121870
  • Brand Seco
  • Model Number 02656007
  • Barcode Number 56007026001003
  • Designation 218.19-100T-M06,MP3000
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 2.78
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 7.06
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 10
  • Type Milling Insert
  • Grade MP3000
  • Insert Seat Size Code (SSC) 218.19-100
SKU: A0121870

Seco High Feed Milling Single Sided Insert 10 x 0.8 x 2.78mm MP3000 Grade (M06 Geometry) 218.19-100T-M06,MP3000 Pack of 10

High Feed Milling Insert MP3000 Grade (M06 Geometry)

$311.74
