Description

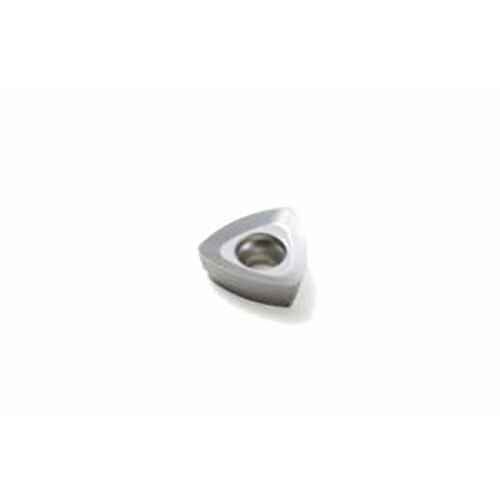

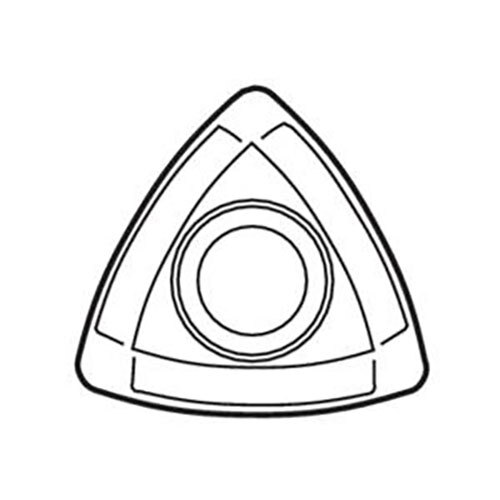

High Feed Milling Insert MS2050 Grade (M06 Geometry)

  • MS2050 grade.
  • M06 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-100 Insert Seat Size Code (SSC).

About MS2050 Grade

  • PVD coated grade.
  • PVD-coated grade first choice for machining titanium alloys.
  • Can also be used as a complementary grade for milling stainless steels when increased toughness is needed.
  • (Ti; Al) N – NbN.

Specifications

  • AIMS SKU A0121873
  • Brand Seco
  • Model Number 02899506
  • Barcode Number 99506028001004
  • Designation 218.19-100T-M06,MS2050
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 2.78
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 7.06
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 10
  • Type Milling Insert
  • Grade MS2050
  • Insert Seat Size Code (SSC) 218.19-100
SKU: A0121873

Seco High Feed Milling Single Sided Insert 10 x 0.8 x 2.78mm MS2050 Grade (M06 Geometry) 218.19-100T-M06,MS2050 Pack of 10

High Feed Milling Insert MS2050 Grade (M06 Geometry)

$326.04
