Description

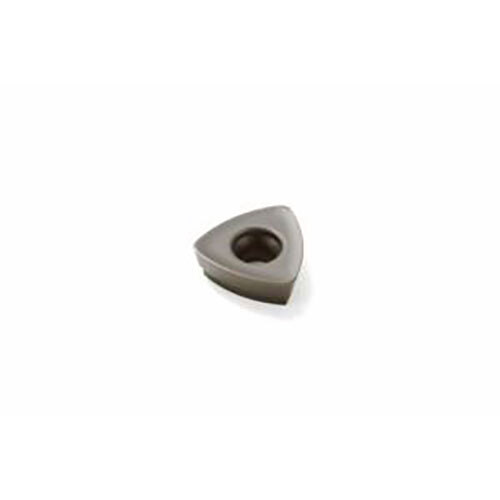

High Feed Milling Insert MS2500 Grade (M06 Geometry)

  • MS2500 grade.
  • M06 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-100 Insert Seat Size Code (SSC).

About MS2500 Grade

  • CVD coated grade.
  • Optimization grade for superalloy materials, also suitable for rough milling in tool steel.
  • Ti (C, N) – Al2O3.

Specifications

  • AIMS SKU A0121876
  • Brand Seco
  • Model Number 02637880
  • Barcode Number 37880026001007
  • Designation 218.19-100T-M06,MS2500
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Both
  • Insert Thickness (S) mm 2.78
  • Corner Radius (RE) mm 0.8
  • Inscribed Circle Diameter (IC) mm 7.06
  • Clearance Angle Major (an) Deg 12.0 deg
  • Curved Cutting Edge Radius (CCER) mm 10
  • Type Milling Insert
  • Grade MS2500
  • Insert Seat Size Code (SSC) 218.19-100
SKU: A0121876

Seco High Feed Milling Single Sided Insert 10 x 0.8 x 2.78mm MS2500 Grade (M06 Geometry) 218.19-100T-M06,MS2500 Pack of 10

High Feed Milling Insert MS2500 Grade (M06 Geometry)

$311.74
