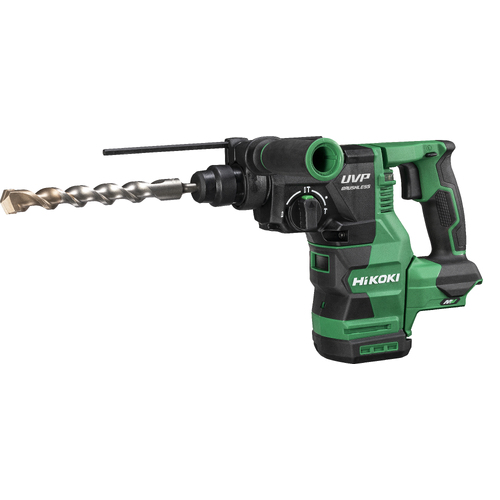

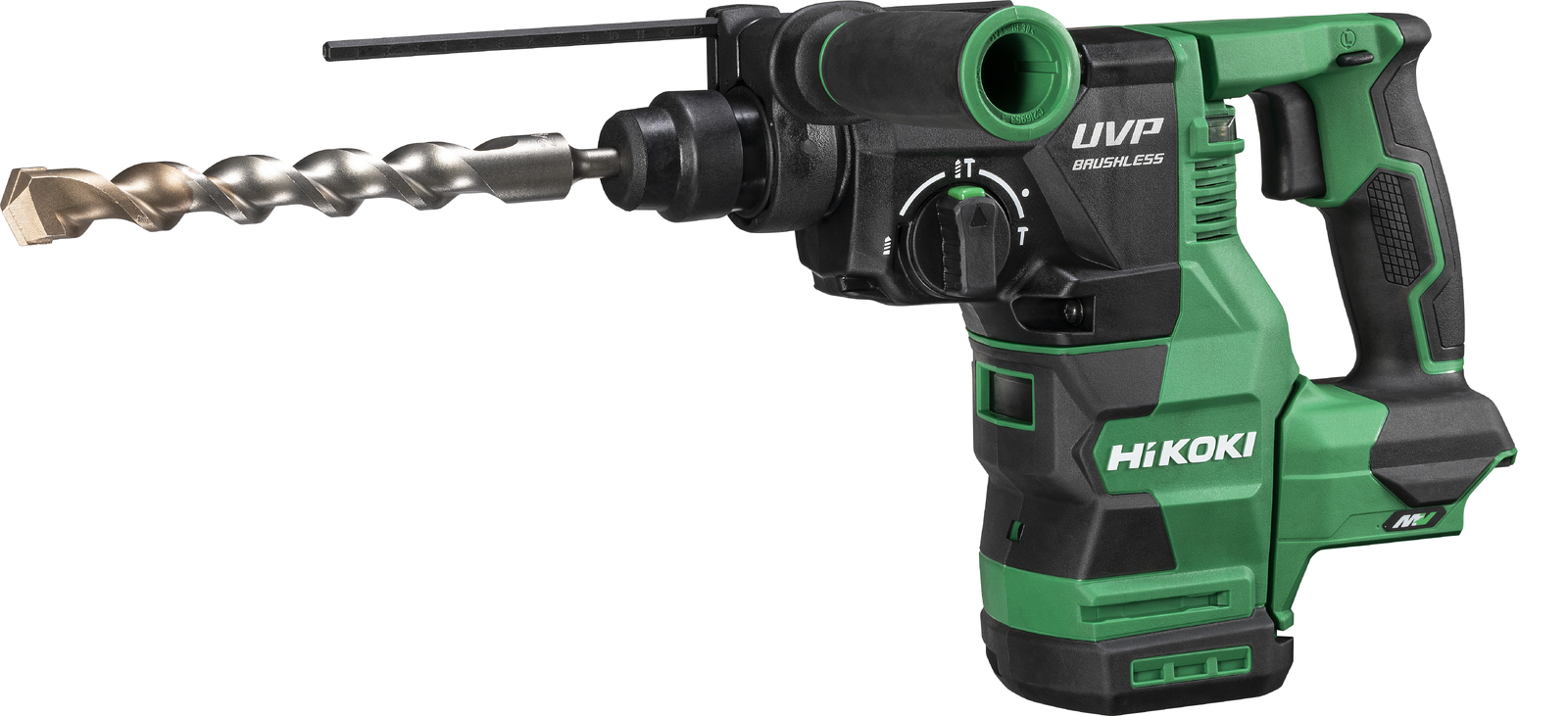

HiKOKI H3628DA SDS Plus Cordless Rotary Hammer

• Introducing the 36V SDS PLUS Cordless Rotary Hammer DH3628DA(H4Z) from HiKOKI, a game-changer in drilling experiences.
• With an exceptional impact energy of 3.2J, this tool showcases unparalleled drilling speed and chiseling performance.
• The innovative UVP (User Vibration Protection) technology, featuring a dynamic vibration absorber and a low vibration handle, ensures reduced vibration for enhanced user comfort.
• Equipped with RFC (Reactive Force Control), this rotary hammer provides improved control, making it an ideal choice for various applications.
• The built-in LED working light adds to the versatility, offering increased visibility in any work environment.
• For added convenience, the DH3628DA(H4Z) features an efficient dust extraction system, available separately (379135), ensuring a clean workspace.
• The tool boasts a durable brushless motor, delivering long-lasting performance and reliability.
• Its ergonomically designed L-shaped body further enhances user comfort, making it a reliable and efficient choice for your drilling needs.
• Skin Tool only (Battery & Charger not included)

Features

• Exceptional drilling speed and chiselling performance, delivering an impact energy of 3.2J
• Reduced vibration with UVP (User Vibration Protection) - featuring a dynamic vibration absorber and a low vibration handle.
• RFC (Reactive Force Control) for improved control
• LED working light for increased visibility.
• Efficient dust extraction system- Sold separately (379135)
• Long-lasting brushless motor, providing durability and reliable performance.
• Ergonomically designed L-shaped body for comfortable and efficient use.

Applications

• Drilling into concrete surfaces
• Creating pilot holes for anchors, nylon plugs, and other fasteners
• Precision drilling in tiles and bricks with adjustable hammering force via a variable speed switch
• Anchoring with hammering force, facilitated by an anchor setter
• Performing concrete chiseling, chipping, wall chasing, and tile removal
• Drilling holes in metal and wood materials using a drill chuck and chuck adapter

Warranty

• Includes 3 Years Standard Warranty with an additional 3 Years when registered online.

Specifications

• Voltage: 36V
• Motor type: Brushless
• Switch type: Variable speed trigger switch
• Impact energy: 3.2J
  Drilling Range Capacity
  Concrete Drill bit: 3.4 - 28mm
  Concrete Core bit: 25 - 50mm
  Steel: 13mm
  Wood: 32mm
• Full load impact rate
  Normal: 0 - 4,300rpm
  Low: 0 - 3,170rpm
• No-load Speed
  Normal: 0-950rpm
  Low: 0 - 700rpm
• 3 operating modes: Hammer only, drilling only & Hammer / Drilling
• Light: LED
• UVP (User Vibration Protection): Yes
• Low Vibration Handle: Yes
• RFC (Reactive Force Control): Yes
• One-Push Action for Quick Bit Mounting: Yes
• Constant Speed Control: Yes
• 2 Step Speed Control: Yes
• Auto Stop Function: Yes
• LED level: Yes
• Dust Extractor System: Yes, sold separately (379135)
• Weight including battery (BSL36A18): 3.9kg
• Dimensions L x W x H including battery: 356 x 91 x 232mm
