Specifications
- AIMS SKU A0113101
- Brand Seco
- Model Number 74016522
- Barcode Number 16522740001006
- Net Weight (kg) 0.002

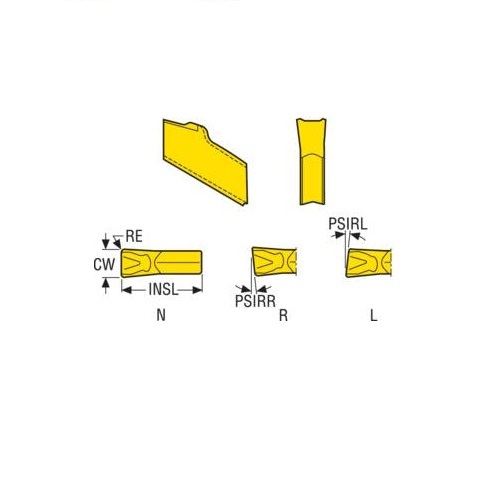

- Designation 150.10-4R6-16 HX
- Cutting Width (mm) 4.1
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 6.0 deg
- Corner Radius (RE) mm 0.23
- Insert Seat Size Code (SSC) 4
- Type Parting Off Insert
- Grade Type Carbide Uncoated Neutral
- Insert Hand (IH) Right
SKU: A0113101

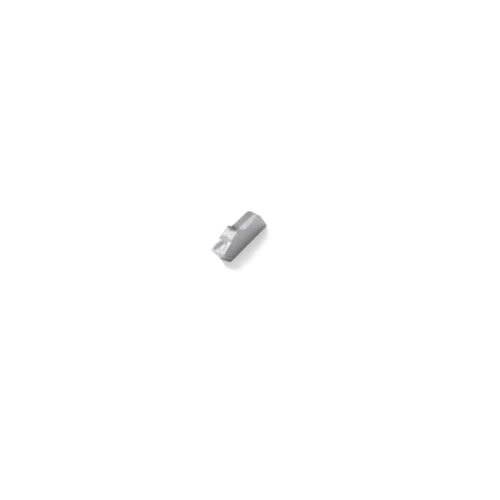

Seco Parting Off Right Insert HX 4.1mm 16 Chipbreaker 150.10-4R6-16,HX - Pack of 10
Turning 150.10 Parting Off Right Insert
$229.76
