Description

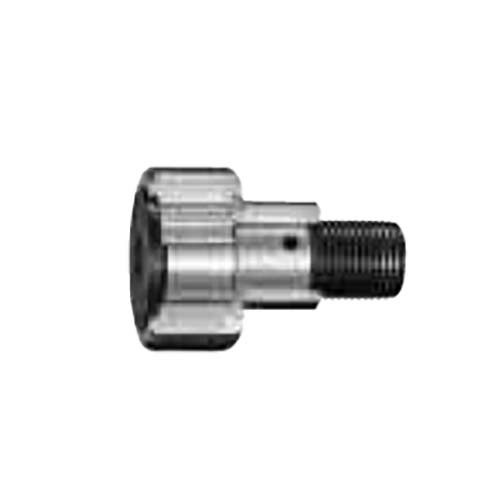

Cam Follower Full Complement 2RS Cylindrical Outer Ring

  • Sealed type.
  • Cylindrical outer ring.
  • Full Complement.
  • CR, Inch series Cam Follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

Specifications

  • AIMS SKU A0156143
  • Brand IKO
  • Model Number CR48VUU/IKO
  • Type Cam Follower
  • D1 (mm) 31.75
  • B2 (mm) 63.5
  • Mounting Dimension f Min. (in) 2 3/64
  • Stud Diameter (mm) 31.75
  • Stud Diameter (inch) 1 1/4
  • G UNF 1 1/4 - 12
  • G1 (in) 1/4
  • B max (in) 1.83
  • B2 (in) 2 1/2
  • B3 (in) 5/8
  • C1 (in) 1/16
  • g2 (mm) 4.762
  • G2 (in) 3/16
  • R (in) 3/32
  • Maximum Tightening Torque N-m 500
  • Mounting Dimension f Min. (mm) 51.991
  • B3 (mm) 15.87
  • Roller Diameter 3 in
  • Stud Diameter 1 1/4 in
  • Width (in) 1 3/4
  • d1 (in) 1 1/4
  • Basic Static Load Rating C0 (N) 172000
  • Basic Dynamic Load Rating C (N) 77600
  • Roller Width 1 3/4 in
  • B Max (mm) 46.4
  • Outside Diameter (in) 3
  • g1 (mm) 6.35
  • R (mm) 2.381
  • D (mm) 76.2
  • C1 (mm) 1.588
  • C (mm) 44.45
SKU: A0156143

IKO Cam Follower Full Comp Slotted 2RS Cylindrical Outer Ring 1-1/4 x 3 x 1-3/4"

Cam Follower Full Complement 2RS Cylindrical Outer Ring

$475.08
