Description

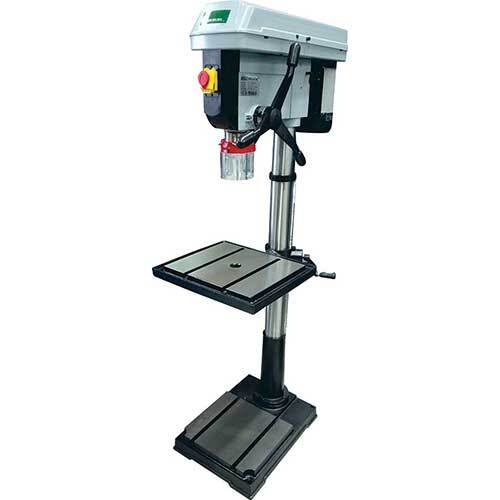

Pedestal Drill Press

  • Heavy duty quality casting, the main body 1 piece construction.
  • Main column tube thick-walled giving greater rigidity.
  • Efficient and smooth V belt drive system with adjustable spindle speeds.
  • Micro safety switch fitted to pulley guard to ensure “non-start “ when changing spindle speeds.
  • Belt tensioning lever quick action type.
  • Worktable slotted in the base to allow rigid mounting of work.
  • Left and right tilt work table, rotation to 45% with a gauge.
  • Heavy-duty rack and pinion work table height adjustment with locking lever.
  • Industrial duty 1 piece cast-iron drilling lever with depth stop.
  • Safety drilling chuck guard, adjustable with the flip-up screen.
  • No Voltage Release Safety Switch.
  • Quality copper wound 240 volts fan-cooled, aluminum finned electric motor.
  • 12 Spindle Speeds: 150, 240, 270, 330, 430, 470, 830, 1030, 1270, 1430,1790 & 2450 RPM.
Includes
  • 20mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills

Specifications

  • AIMS SKU A0124243
  • Brand Insize
  • Model Number IN5132
  • Barcode Number 9335319026313
  • Type Pedestal Drill Press
  • Collar Diameter (mm) 75
  • Chuck Guard Yes
  • Micro Switch On Pulley Guard Yes
  • Nvr Safety Switch Yes
  • Emergency Stop
  • Column Diameter (mm) 92
  • Base Plate (mm) 580 x 430
  • Working Table (mm) 470 x 420
  • Swing (mm) 438
  • Spindle Speed Range (rpm) 150-2450rpm
  • Spindle Speed Steps 12
  • Quill Diameter (mm) 62
  • Spindle Taper 4MT
  • Spindle Travel (mm) 120
  • Drilling Capacity Max (mm) 32
  • Chuck Size (mm) 5-20mm /B22
  • Motor (v-amps) 240v-7Amp
  • Motor (hp) 1.5
  • Motor (w) 1100
  • Overall Height (mm) 1700
SKU: A0124243

Insize Pedestal Drill Press 1.5 HP 32mm Drill Capacity

Pedestal Drill Press

$2,114.59
