KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state of the art manufacturing and quality assurance technology, KCM strives to maintain its world recognized quality products. KCM roller drive chains are used in a broad range of industries for transmission and driving of various equipment.

Features

  • KCM roller chains come in one connecting link
  • Wide range of roller chain sizes available to suit various applications
  • Choose from 3 different strands: Simplex, Duplex or Triplex
  • Available in British or American standard

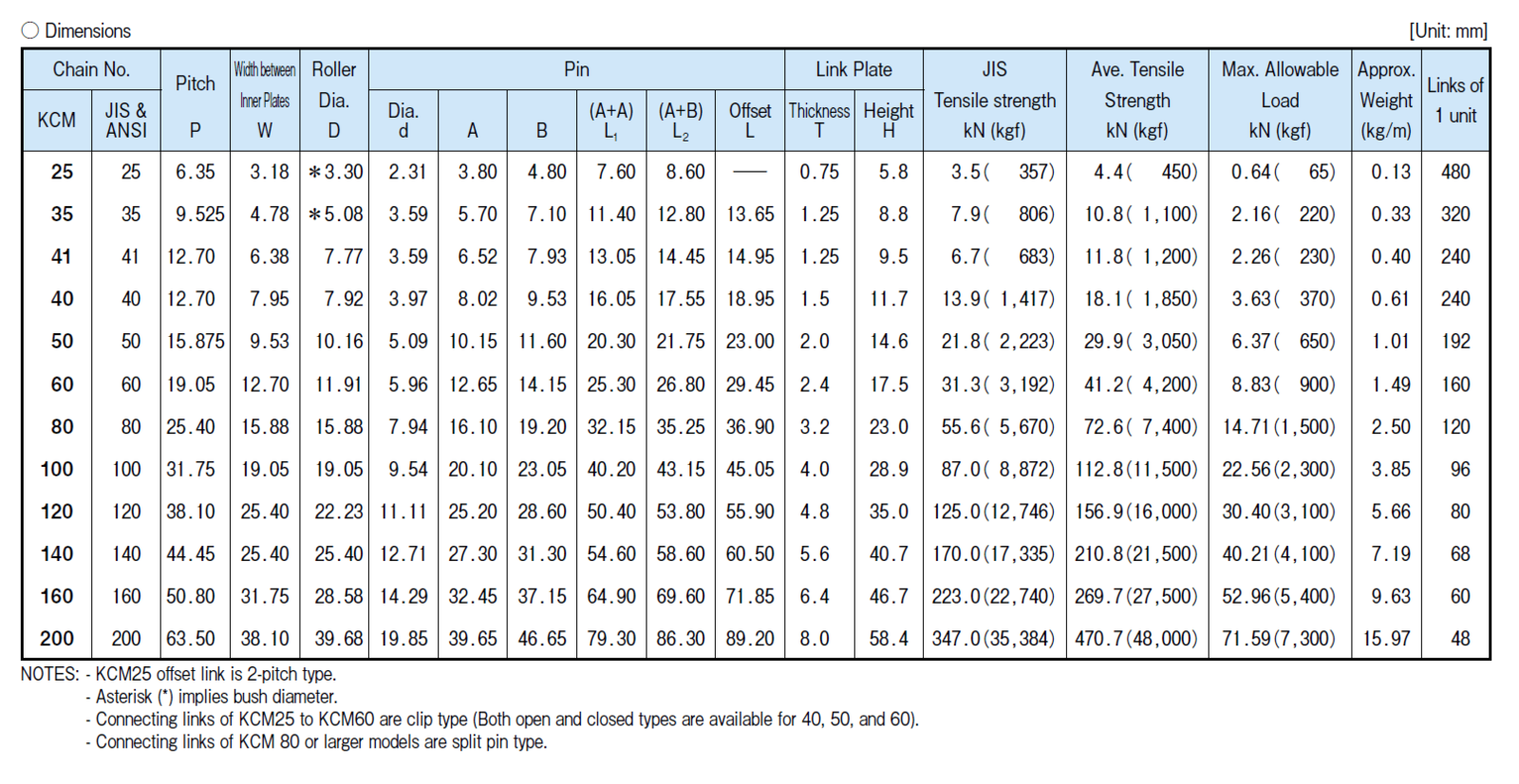

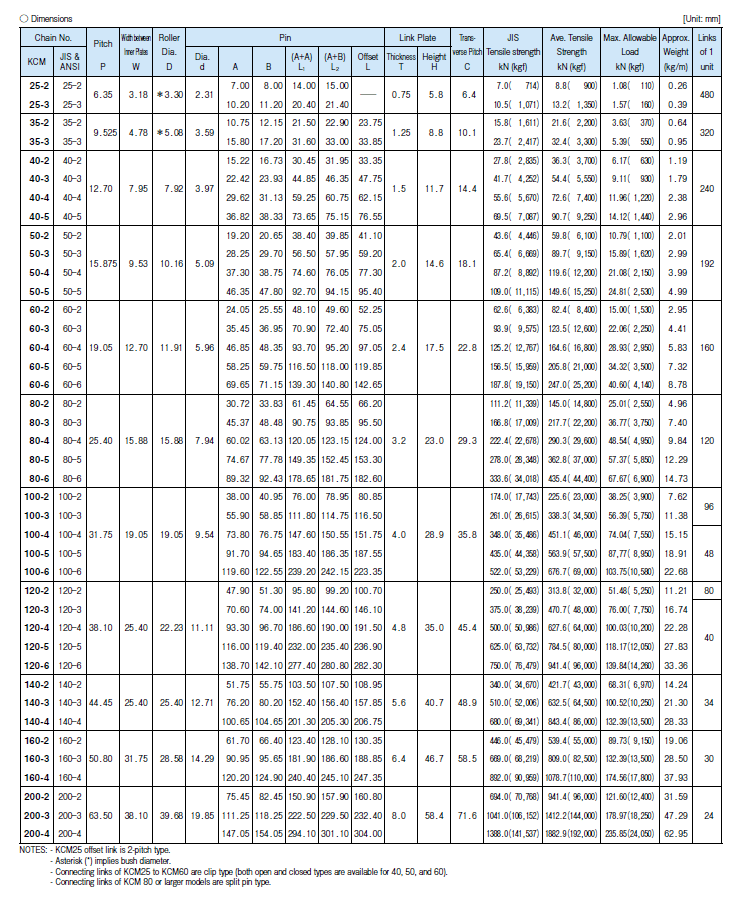

AIMS Industrial Supplies is an authorised roller chain supplier in Australia. If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Each box contains 10 Foot of Chain and 1 Connecting Link. Additional links may be purchased separately if required.

Specifications

  • AIMS SKU A0067123
  • Brand KCM
  • Model Number 35-2/KCM
  • Chain Number 35
  • Pitch (inch) 3/8
  • Number of Chain Links 320
  • Chain Strands 2 Duplex
  • Average Tensile Strength, kN (kgf) 21.6
  • JIS Tensile Strength, kN (kgf) 15.8 (1,611)

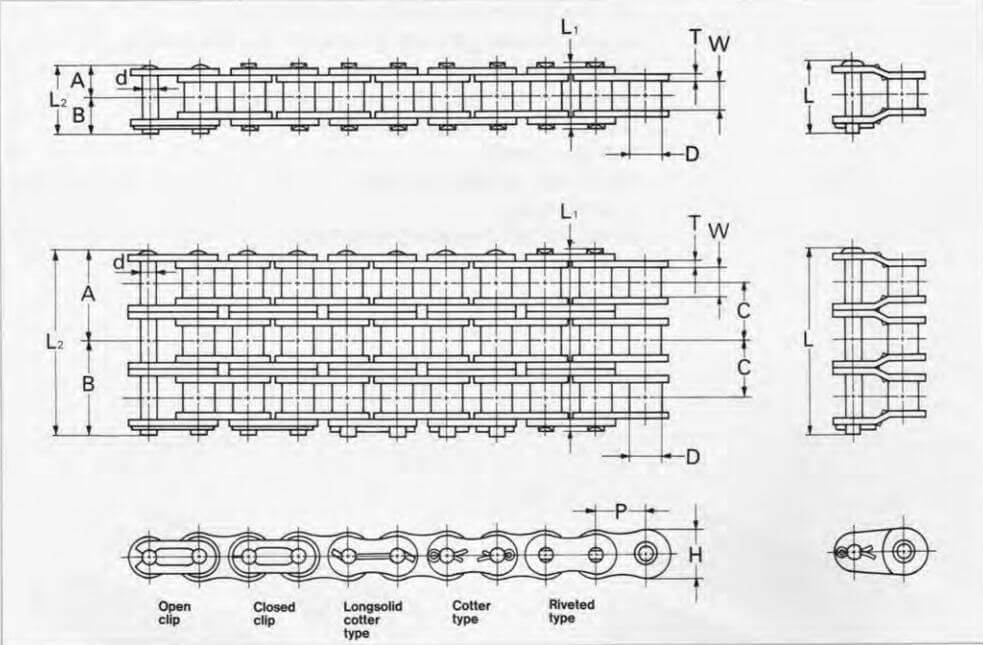

  • Link Plate Height (H) 8.8 mm
  • Link Plate Thickness (T) 1.25 mm
  • Pin Offset L 23.75 mm
  • Pin (A+B) L 22.9 mm
  • Pin (A + A) L 21.5 mm
  • Pin B 12.15 mm
  • Pin A 10.2
  • Pin Diameter (D) 3.59 mm
  • Roller Diameter (D) 5.08 mm
  • Width Between Inner Plates (W) 4.78 mm
  • Pitch (P) 9.525 mm
  • System of Measurement American (ASA)
  • Material Steel
  • Strand Duplex
SKU: A0067123

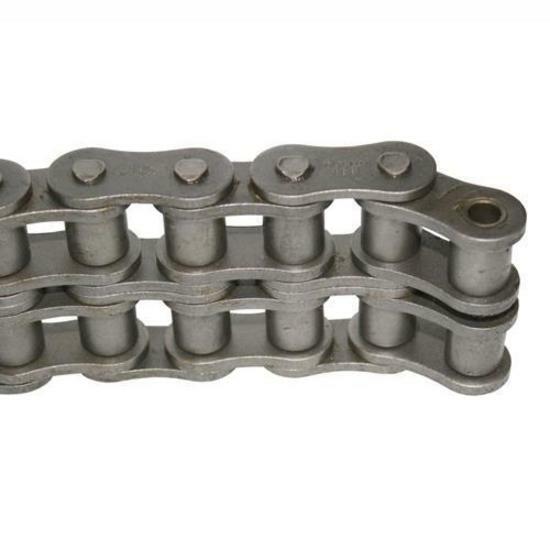

KCM 35-2 ASA Roller Chain Duplex 3/8" Pitch - Box of 10 Foot

KCM Roller Drive Chain

$156.85
