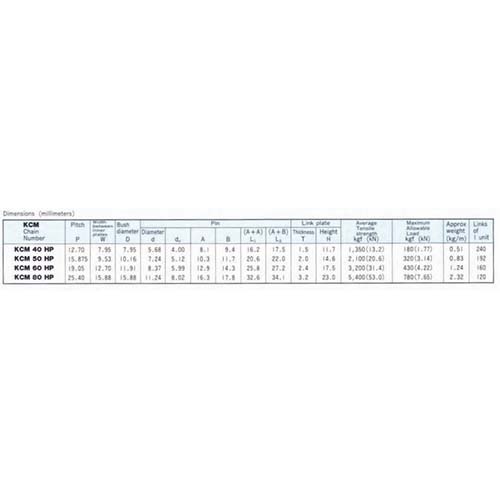

Specifications

AIMS SKU A0067008
Brand KCM
Model Number 40HP/KCM
Chain Number 40HP
Pin (A+A) L1 (mm) 16.2
Links of 1 unit (mm) 240
Approx. Weight (kg/m) 0.51
Average Tensile Strength kN (kgf) 13.2 (1,350)
Pin Inside Diameter d。(min) (mm) 4
Bush Diameter D (mm) 7.95
Pin Outside Diameter (d) (mm) 5.68
Link Plate Height H (mm) 11.7
Link Plate Thickness T (mm) 1.5
Pin (A+B) L2 (mm) 17.5
Pin B (mm) 9.4
Pin A (mm) 8.1
Width Between Inner Plates W (mm) 7.95
Chain Length 10 ft
Roller Chain Type Hollow Pin
Chain Pitch 1/2 in
Maximum Allowable Load kN (kgf) 1.77 (180)
Features Simplex Strand
• Type Roller Chain
• System of Measurement American (ASA)
