Specifications

AIMS SKU A0067026
Brand KCM
Model Number 40SB/KCM
Chain Number 40SB
Pin A (mm) 8.2
Min Horizontal Bending Radius R 350
Max Allowable Load (kgf) 190
Max Allowable Load (kN) 1.86
Average Tensile Strength (kgf) 1200
Link Plate Height H (mm) 11.7
Link Plate Thickness T (mm) 1.5
Pin (A+B) L2 (mm) 17.9
Pin (A+A) L1 (mm) 16.4
Pin B (mm) 9.7
Pin Diameter d (mm) 3.59
Roller Diameter D (mm) 7.92
Width Between Inner Plates W (mm) 7.95
Pitch P (mm) 12.7
Chain Length 10 ft
Chain Pitch 1/2 in
Average Tensile Strength (kN) 11.8
Approximate Weight (kg/m) 0.6

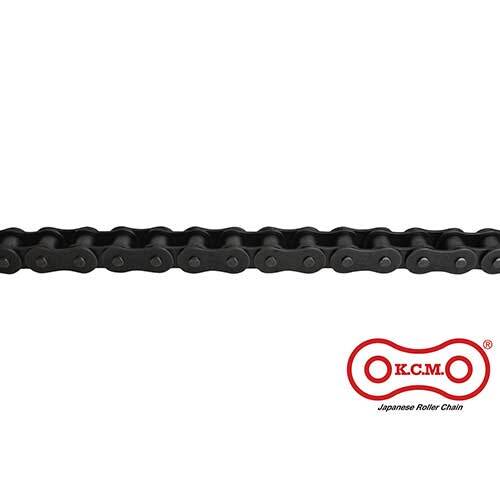

• Type Roller Chain
• System of Measurement American (ASA)
• Strand Simplex
