Specifications

AIMS SKU A0066912
Brand KCM
Model Number 35-1N/KCM
Chain Number 35

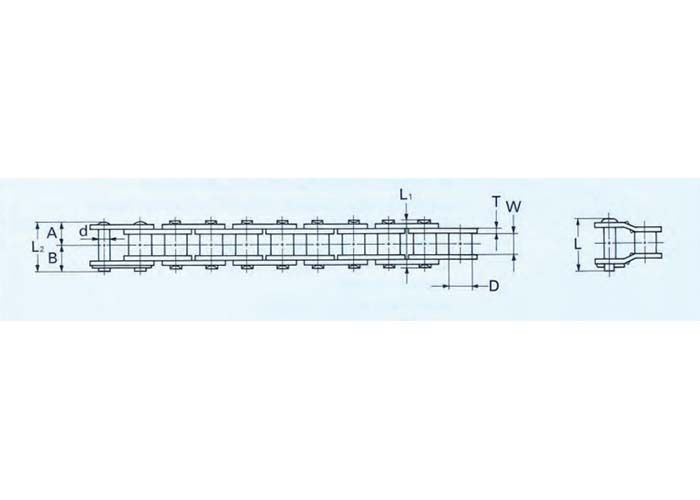

Pin (A+A) L1 (mm) 11.4
JIS & ANSI Tensile Strength kgf (kN) 806 (7.9)
Average Tensile Strength kgf (kN) 1,100 (10.8)
Maximum Allowable Load kgf (kN) 220 (2.16)
Links of 1 unit (mm) 320
Approx. Weight (kg/m) 0.33
Link Plate Height H (mm) 8.8
Link Plate Thickness T (mm) 1.25
Pin Offset L (mm) 13.65
Pin (A+B) L2 (mm) 12.8
Pin B (mm) 7.1
Pin A (mm) 5.7
Pin Diameter d (mm) 3.59
Roller Diameter D (mm) 5.08
Width Between Inner Plates W (mm) 4.78
Chain Length 10 ft
Roller Chain Type Riveted
Chain Pitch 3/8 in
Features Simplex
• Type Roller Chain
• System of Measurement American (ASA)
• Material Nickel Plated
