Specifications

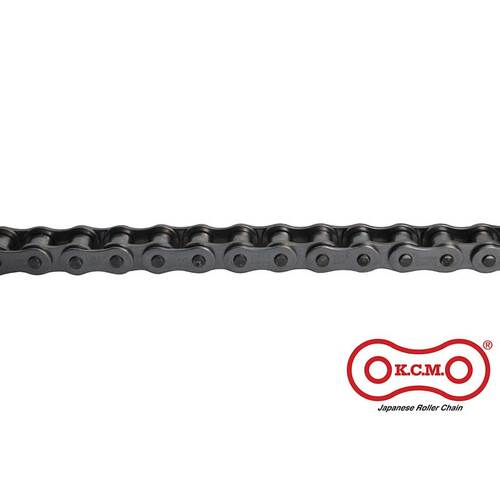

AIMS SKU A0066945
Brand KCM
Model Number 08B-1N/KCM
Chain Number 08B
Pin Offset L (mm) 19.2
Minimum Tensile Strength kgf (kN) 1,850 (18.1)
ISO 606 Minimun Tensile Strength kgf (kN) 1,820 (17.8)
Transversion Pitch C (mm) 13.92
Links of 1 unit (mm) 240
Approx. Weight (kg/m) 0.65
Pin L2 (mm) 17.75
Link Plate Height H (mm) 11.7
Link Plate Thickness T (mm) 1.5
Pin Diameter d (mm) 4.45
Roller Diameter D (mm) 8.51
Width Between Inner Plates W (mm) 7.75
Chain Length 10 ft
Roller Chain Type Riveted
Chain Pitch 1/2 in
Features Simplex
• Type Roller Chain
• System of Measurement British (BS)
• Material Nickel Plated
