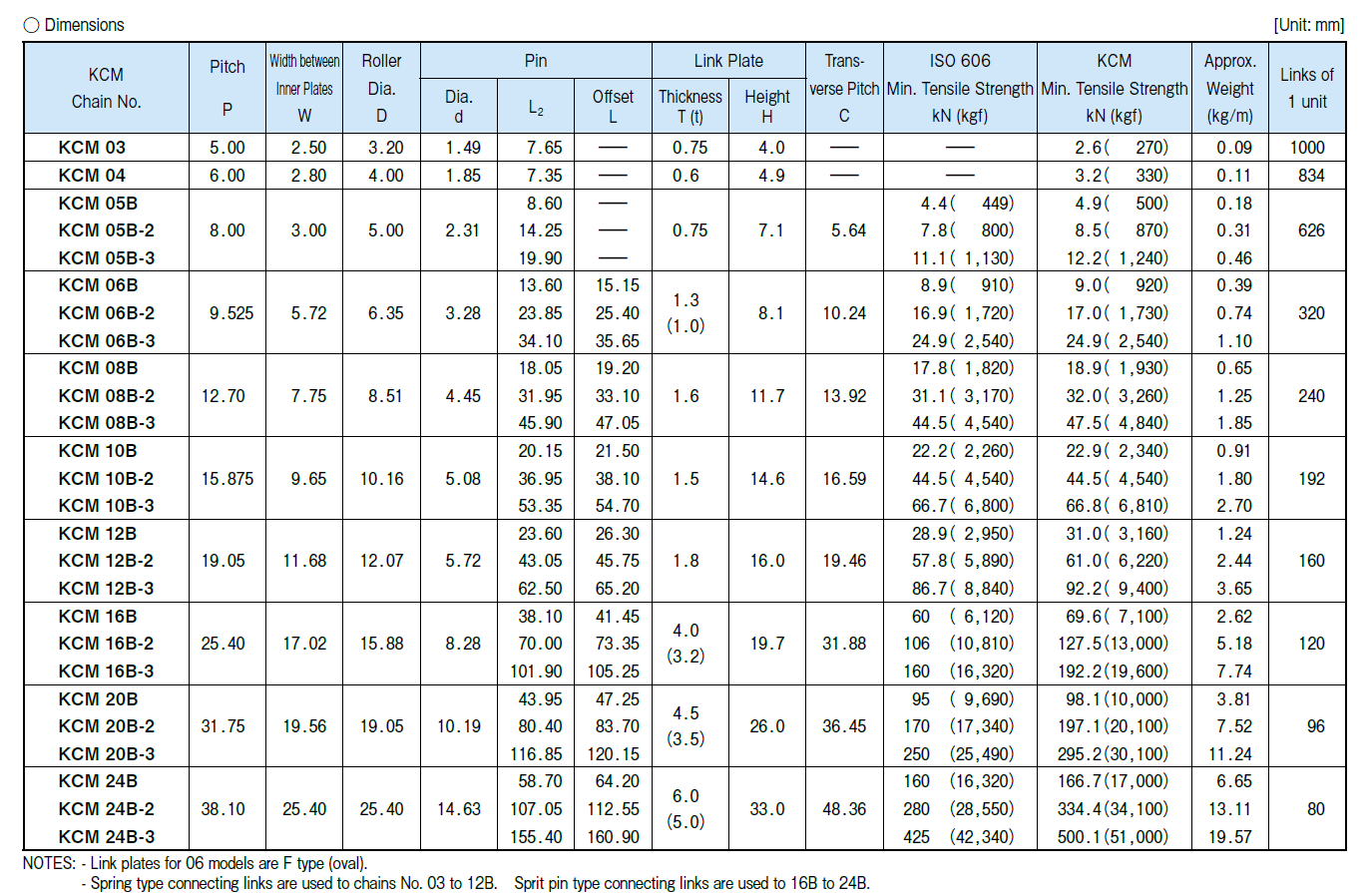

Specifications
- AIMS SKU A0067242
- Brand KCM
- Model Number 06B-3/KCM
- Chain Number 06B-3
- Pitch (inch) 3/8
- Pitch (P) 9.525 mm
- Width Between Inner Plates (W) 5.72 mm
- Roller Diameter (D) 6.35 mm
- Pin Diameter (D) 3.28 mm
- Link Plate Thickness (T) 1.3 mm
- Link Plate Height (H) 8.1 mm
- Chain Strands 3 (Triplex)
- Number of Chain Links 320

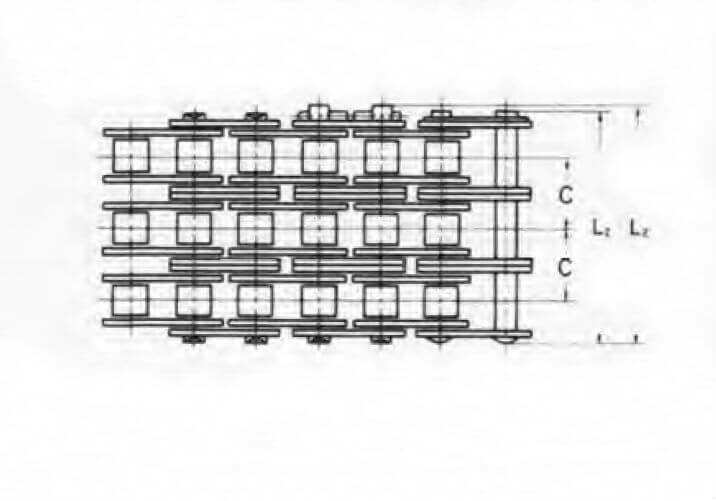

- Pin L 34.10 mm
- Pin Offset (l) 35.65 mm
- Transverse Pitch (C) 10.24 mm
- ISO 606 Minimum Tensile Strength, kN (kgf) 24.9 kN (2,540 kgf)
- KCM Minimum Tensile Strength, kN (kgf) 24.9 kN (2,540 kgf)
- Approximate Weight (kg/m) 1.1 kg/m
- System of Measurement British (BS)
- Material Steel
- Strand Triplex
SKU: A0067242

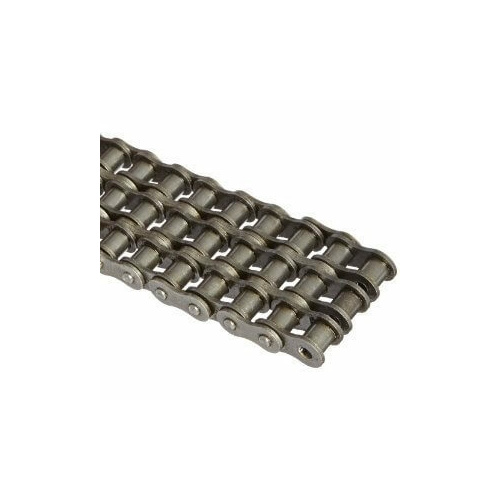

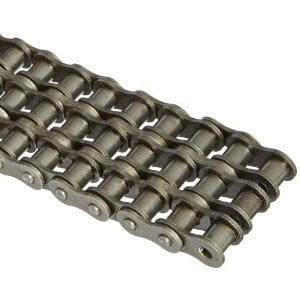

KCM 06B-3 BS Roller Chain Triplex 3/8" Pitch - Box of 10 Foot
KCM Roller Drive Chain
$297.00
