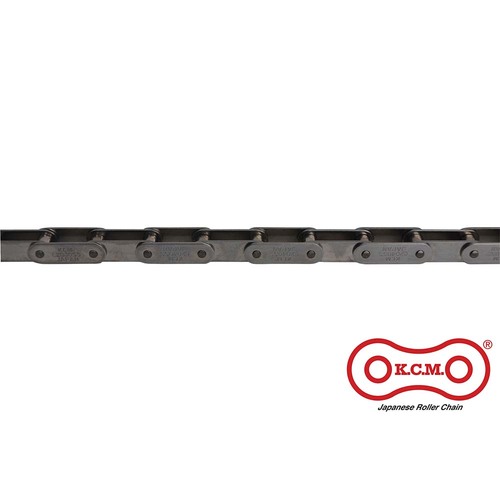

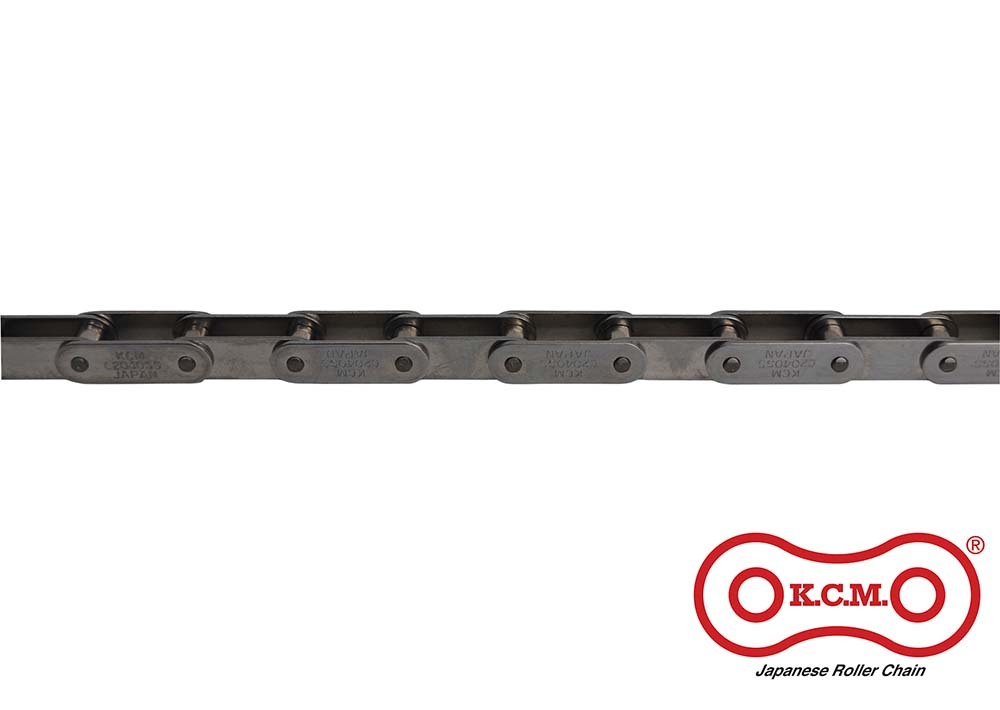

KCM Roller Chain Double Pitch Stainless Steel

Description

KCM Roller Chain Double Pitch Stainless Steel

A Double-pitch roller chain, whose pitch is doubled compared to a standard roller chain.

Available in standard and oversize rollers

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries to transmit and drive various equipment.

Each box contains 10 Foot of Chain. Additional links may be purchased separately if required.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia.
If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Specifications

AIMS SKU A0066867

Brand KCM

Model Number C2040SS/KCM

Chain Number C2040RIVSS

Pin B (mm) 10.28

Maximum Allowable Load kgf (kN) 45 (0.44)

Links of 1 unit (mm) 120

Approx. Weight (kg/m) 0.49

Roller Type S

Link Plate Height H (mm) 11.7

Link Plate Thickness T (mm) 1.5

Pin Offset L (mm) 19.05

Pin (A+B) L2 (mm) 18.35

Pin (A+A) L1 (mm) 16.15

Pin A (mm) 8.07

Pin Diameter d (mm) 3.97

Roller Diameter D (mm) 7.95

Width Between Inner Plates W (mm) 7.95

Chain Length 10 ft

Roller Chain Type Riveted

Chain Pitch 1 in

Features Double Pitch

Type Roller Chain
Material Stainless Steel
