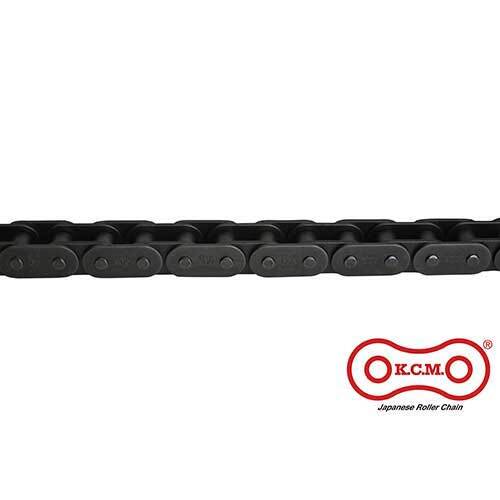

KCM Roller Chain Straight Side Plate Simplex (F-Type)

Description

KCM Roller Chain Straight Side Plate Simplex Strand (F-Type)

The KCM F-type roller chains are standard roller chains using straight contour link plates, which are suitable for general power transmission, and conveying of materials placed directly on them.
The side bow chain may be laterally curved for easily curved movement, using standard sprockets.
Also, this chain can be used with attachments to form a curved conveyor, etc.
KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard).
Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products.
KCM roller drives are used in a broad range of industries for the transmission and driving of various equipment.

Features

Wide range of roller chain connecting link sizes available to suit various applications.

Specifications

AIMS SKU A0066772

Brand KCM

Model Number 50F/KCM

Chain Number 50F

Pin A (mm) 10.15

Max Allowable Load (kgf) 440

Max Allowable Load (kN) 4.31

Average Tensile Strength (kgf) 3050

Link Plate Height H (mm) 14.6

Link Plate Thickness T (mm) 2

Pin (A+B) L2 (mm) 21.75

Pin (A+A) L1 (mm) 20.3

Pin B (mm) 11.6

Pin Diameter d (mm) 5.09

Roller Diameter D (mm) 10.16

Width Between Inner Plates W (mm) 9.53

Pitch P (mm) 15.875

Chain Length 10 ft

Chain Pitch 5/8 in

Average Tensile Strength (kN) 29.9

Approximate Weight (kg/m) 1.2

Type Roller Chain
Strand Simplex
