Description

KCM Roller Chain X-Ring

X describes the shape of the ring. This means that when pressed between the chain-plates, it no longer has a flattened O ring shape but instead has two smaller faces touching either plate in an X shape. This gives the same great sealing and durability but with very low friction.

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries to transmit and drive various equipment.

Each box contains 10 Foot of Chain. Additional links may be purchased separately if required.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia.
If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Specifications

  • AIMS SKU A0067332
  • Brand KCM
  • Model Number 08B-1XR/KCM
  • Chain Number 08B
  • Chain Pitch 1/2 in
  • Roller Chain Type X-Ring
  • Width Between Inner Plates W (mm) 7.75
  • Roller Diameter D (mm) 8.51
  • Pin Diameter d (mm) 4.45
  • Pin Offset L (mm) 19.2
  • Link Plate Thickness T (mm) 1.6
  • Link Plate Height H (mm) 11.7
  • Approx. Weight (kg/m) 0.65
  • Links of Diameter 1 unit (mm) 240
  • Transversion Pitch C (mm) 13.92
  • Type Roller Chain
SKU: A0067332

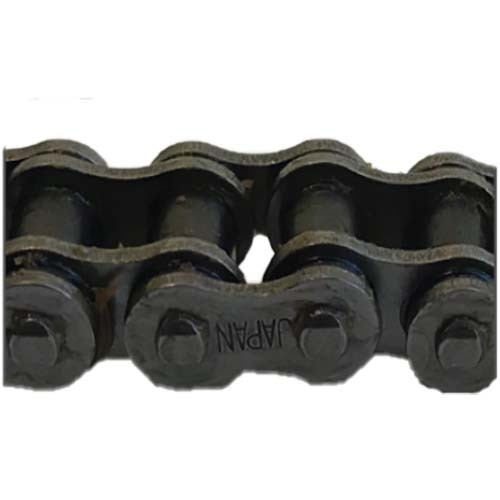

KCM 08B-1 Roller Chain X-Ring 1/2" Pitch - Box of 10 Foot

KCM Roller Chain X-Ring

$484.00
