*** JTEKT (Formerly Koyo Brand) ***

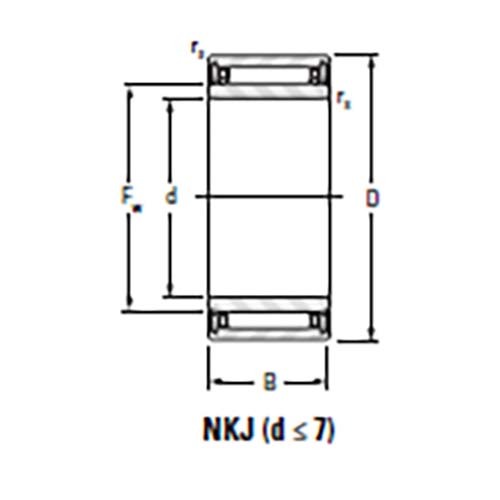

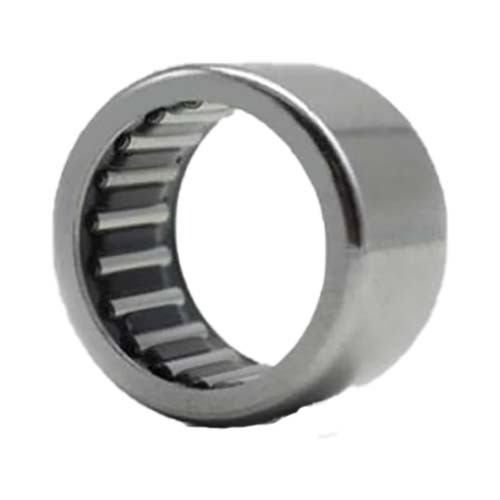

Machined Type Needle Roller Bearing Heavy Duty (NKJS)

About Heavy-Duty Needle Roller Bearings

Heavy-duty needle roller bearings consist of a machined and ground channel-shaped outer ring with a complement of needle rollers, and a cage.
The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication.
These bearings can be used with or without a machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.

Features

A thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross-section.

Benefits

Specifications

AIMS SKU A0157327

Brand Koyo

Model Number NKJS20/KOYO

Type Needle Roller Bearing

Outside Diameter 20

Width (mm) 42

S(1) (in) 0.024

Speed Rating Oil Min-1 11000

S(1) (mm) 0.6

Rs Min (in) 1.1024

Speed Rating Grease Min-1 38.4

Load Rating Static C0 (lbf) 6810

Load Rating Dynamic C (lbf) 0.039

Fw (in) 0.787

Load Rating Static C0 (kn) 30.3

Load Rating Dynamic C (kn) 1

rs min (mm) 28

B (in) 1.6535

D (in) 0.7874

Fw (mm) 20 mm

Bore Diameter 20 mm

Shaft Diameter (in) 8630

Width 42 mm

Outside Diameter (mm) 20

Inside Diameter (mm) 20
