*** JTEKT (Formerly Koyo Brand) ***

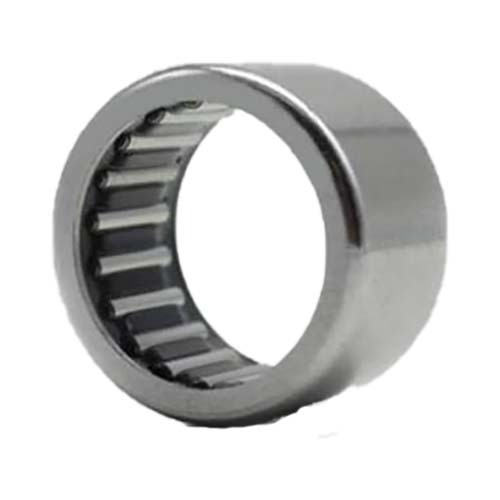

Machined Needle Roller Bearing w/o Inner Ring Poly Cage (NK.TN)

  • NK, needle roller bearing without inner ring, lube hole in outer ring.
  • TN, molded cage of reinforced polymer.

About Heavy-Duty Needle Roller Bearings

  • Heavy-duty needle roller bearings consist of a machined and ground channel-shaped outer ring with a complement of needle rollers, and a cage.
  • The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication.
  • These bearings can be used with or without a machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.

Features

  • Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section.

Benefits

  • Optimum speed and lubrication-retention capability.

Specifications

  • AIMS SKU A0157328
  • Brand Koyo
  • Model Number NK10/16TN/KOYO
  • Type Needle Roller Bearing

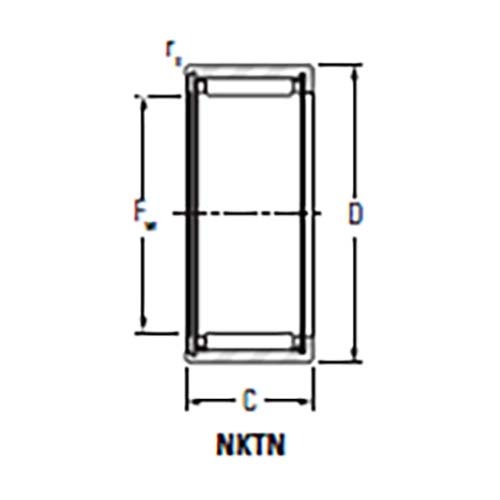

  • Outside Diameter 17 mm
  • Width (mm) 16
  • Shaft Diameter (mm) 10
  • Inside Diameter (mm) 10
  • Outside Diameter (mm) 17
  • Width 16 mm
  • Bore Diameter 10 mm
  • Fatigue Load Limit Cu (kN) 0.94
  • R Min. (mm) 0.3
  • Basic Load Rating Radial (kn) Cr 5.3
  • Basic Load Rating Radial (kn) C0r 6.27
  • Limiting Speed Grease Lub. 25000
  • Limiting Speed Grease Oil Lub. 39000
SKU: A0157328

Koyo/JTEKT Machined Type Needle Roller Bearing w/o Inner Ring Poly Cage 10 x 17 x 16mm

Machined Needle Roller Bearing w/o Inner Ring Poly Cage
