Specifications
- AIMS SKU A0153827
- Brand Koyo
- Model Number NF309/KOYO
- Mounting Dimension (mm) Da Max. 92
- Limiting Speed (min-1) Oil Lub 8300
- Mounting Dimension (mm) Dd Min. 66
- Boundary Dimension (mm) Ew 86.5
- Mounting Dimension (mm) Db Min. 89
- Mounting Dimension (mm) Db Max. 92
- Limiting Speed (min-1) Grease Oil 6200
- Boundary Dimension (mm) r min. 1.5
- Mounting Dimension (mm) Rb Max. 1.5
- Mounting Dimension (mm) Ra Max. 1.5
- Bore Diameter x Outer Diameter x Width (mm) 45 x 100 x 25
- Mounting Dimension (mm) Da Min. 53
- Fatigue Load Limit (kN) Cu 11.3
- Basic Load Rating (kN) C0r 77.5
- Basic Load Rating (kN) Cr 98.5
- Boundary Dimension (mm) r1 min. 1.5
- Bearing Width B (mm) 25
- Outside Diameter D (mm) 100
- Bore Diameter d (mm) 45
- Type Cylindrical Roller Bearings
- Series 300 Series
SKU: A0153827

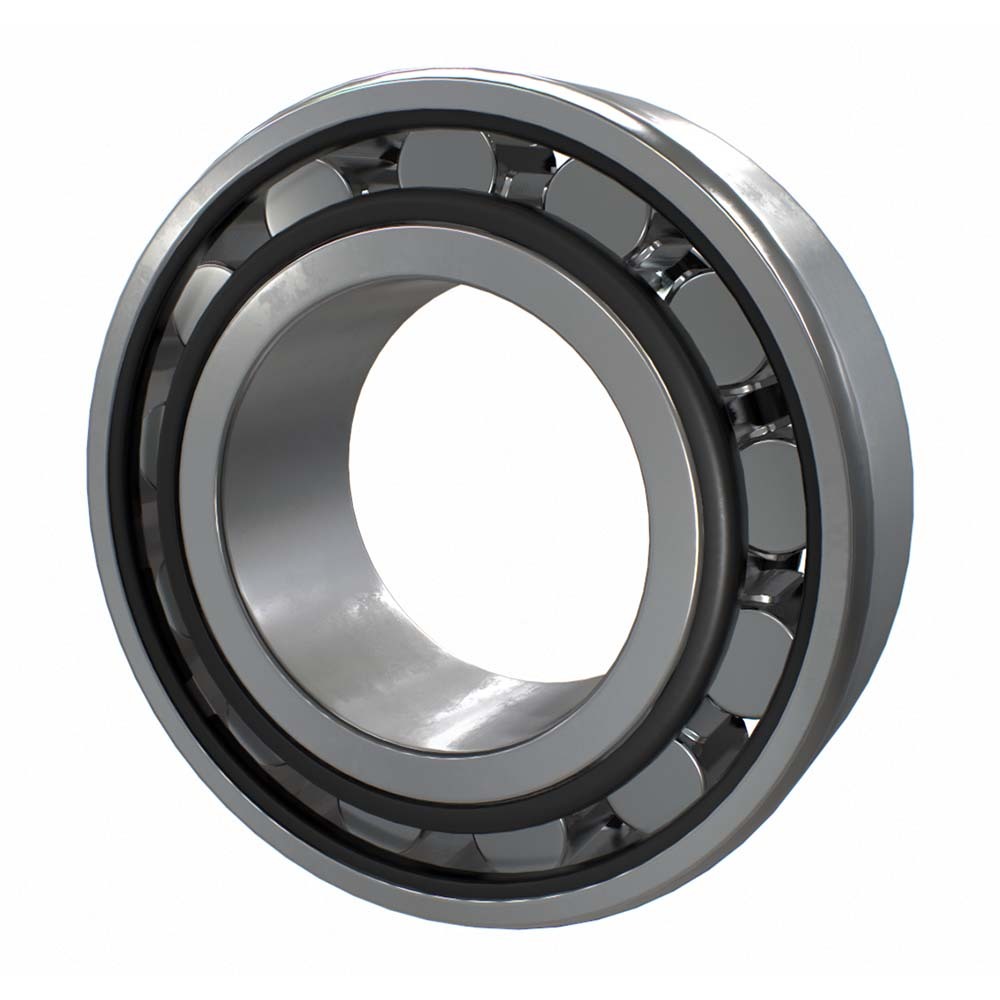

Koyo/JTEKT NF309 Cylindrical Roller Bearing 45 x 100 x 25mm Loose Outer One Side Fix Inner
Cylindrical Bearing Outer One Side Fix Inner 300 Series
$231.07
