Description

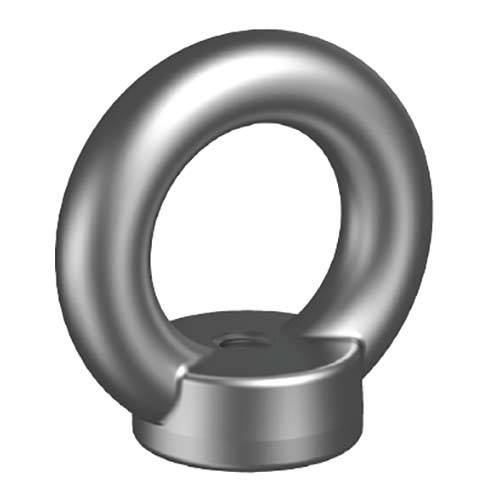

Lifting Eye Nut DIN 582 - Zinc Yellow Passivate

  • DIN 582.
  • Grade C15E.
  • Zinc Yellow Passivate.
  • Eye nut approved and certified for lifting.
  • Can be used in axial or angular loading.

Application

  • Connection point for anchoring, rigging, pulling, lifting, or hoisting.
  • Can be used with ropes, cables, shackles, and hooks.
  • Threaded onto steel equipment, machine, and structures.
  • Bolt through steel or timber profiles.

Features

  • Approved for lifting.
  • Stamped with working load for axial loading.

Specifications

  • AIMS SKU A0152727
  • Size M8

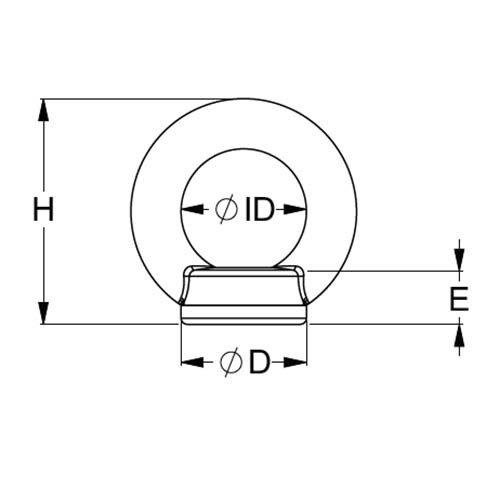

  • Overall Height H (mm) 36
  • Collar Height E (mm) 8.5
  • Collar Width D (mm) 20

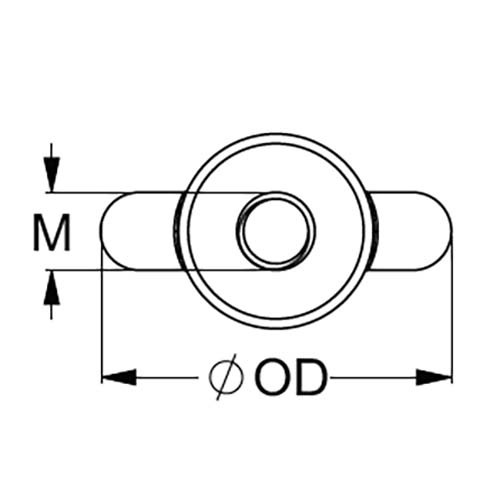

  • Ring Width M (mm) 8
  • Inside Eye Diameter ID (mm) 20
  • Outside Eye Diameter OD (mm) 36
  • Type Lifting Eye Nut
  • Finish Zinc Yellow Passivate
  • Grade C15E
SKU: A0152727

Lifting Eye Nut DIN 582 M8 Zinc Yellow Passivate - Pack of 100

Lifting Eye Nut DIN 582 - Zinc Yellow Passivate

$116.23
