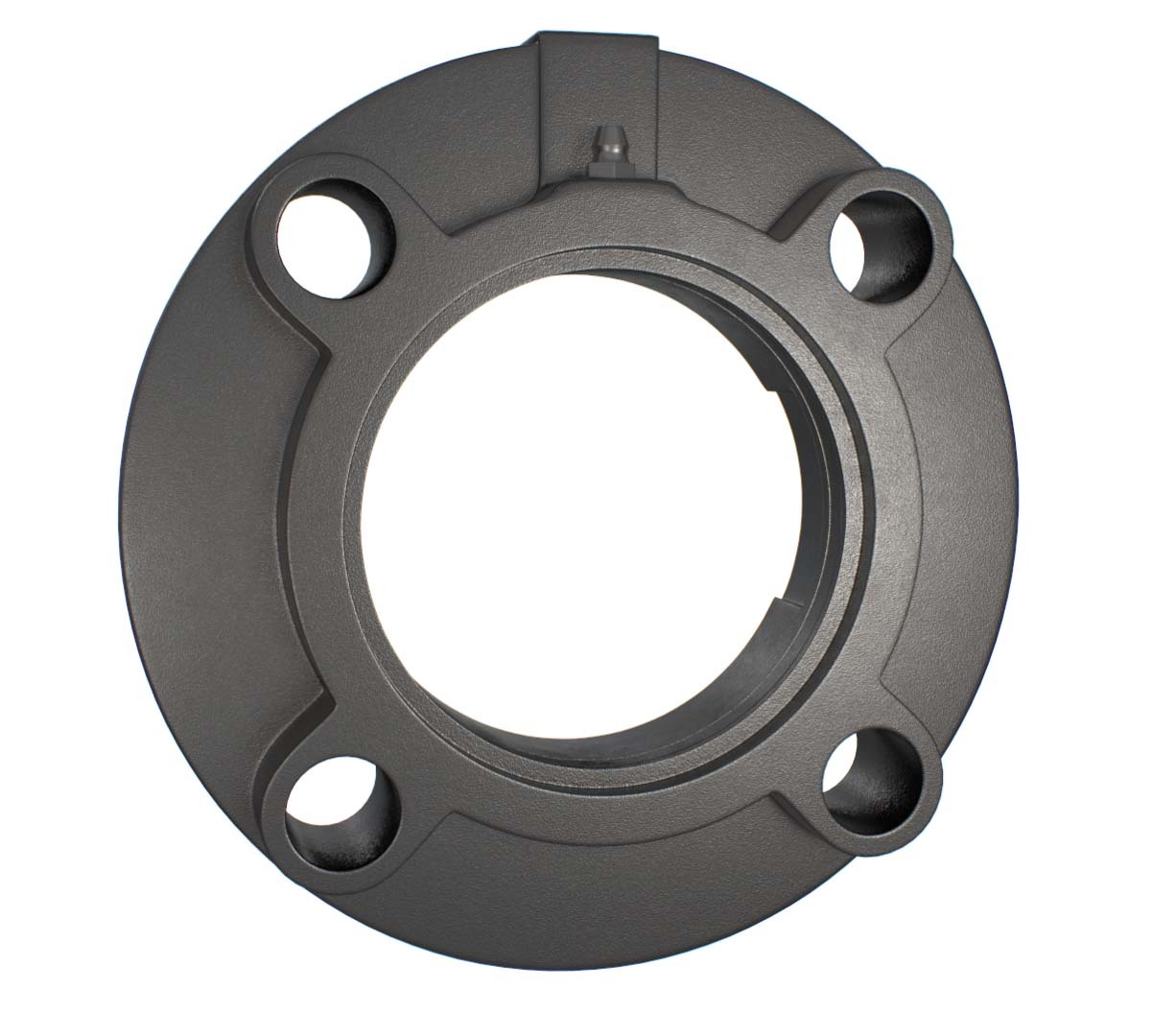

Light 4-Bolt Spigotted Flange Cast Iron Bearing Housing - FYH

Description

Wide Inner Ring Housings (Light Four Bolt Spigotted Flange Bearing Housing)

Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147897

Brand FYH

Model Number FC204/FYH

A4 (mm) 28.3

Shaft Diameter (d) 12 - 20mm ( 1/2 - 3/4")

Shaft Diameter d (mm) 12

Static Load (c0r) kN 6.65

Dynamic Load (cr) kN 12.8

N (mm) 12

J1 (mm) 55.1

J (mm) 78

H3 (mm) 62

A1 (mm) 20.5

A3 (mm) 5

A2 (mm) 10

Bolt Size (mm) M10

Factor Fo 13.2

L (mm) 100

b (mm) 31

S (mm) 12.7

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Four Bolt Spigotted Flange
