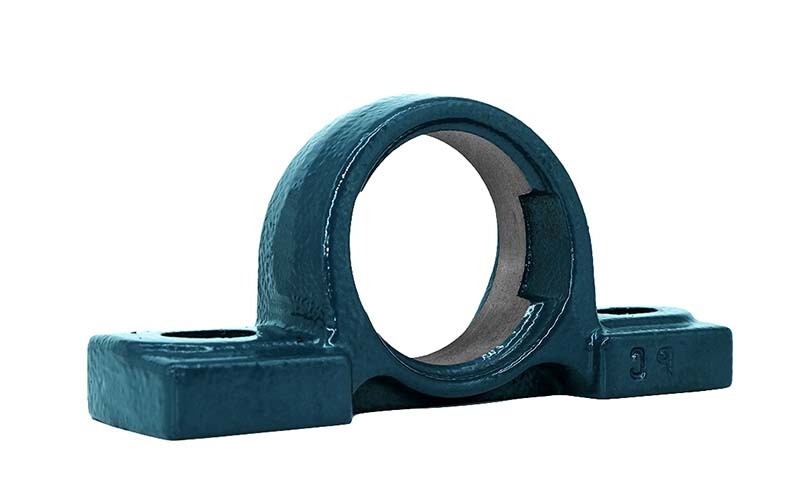

Light Pillow Block Cast Iron Bearing Housing P200 Series - FYH

Description

Wide Inner Ring Housings (Light Pillow Block Bearing Housing)

P200 series light pillow blocks, two-bolt hole foot mounted cast iron pedestal housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147836

Brand FYH

Model Number P210/FYH

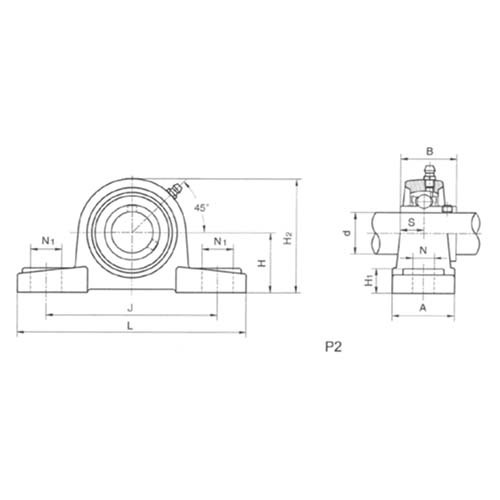

L1 (mm) 63

S (mm) 19

A (mm) 60

b (mm) 51.6

H (mm) 57.2

h2 (mm) 113

L (mm) 206

Bolt Size (mm) M16

H1 (mm) 19

J (mm) 159

N (mm) 20

N1 (mm) 22

Shaft Diameter d (mm) 50

Shaft Diameter (d) 50mm (1 7/8 - 2")

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Pillow Block

Calculate Shipping

Resources

Technical Data Sheet
