Light Take-Up Block Cast Iron Bearing Housing T200 - FYH

Description

Wide Inner Ring Housings (Light Take-Up Block Bearing Housing)

T200 series light take-up block, two slide grooves tensioning cast iron take-up block housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147949

Brand FYH

Model Number T204/FYH

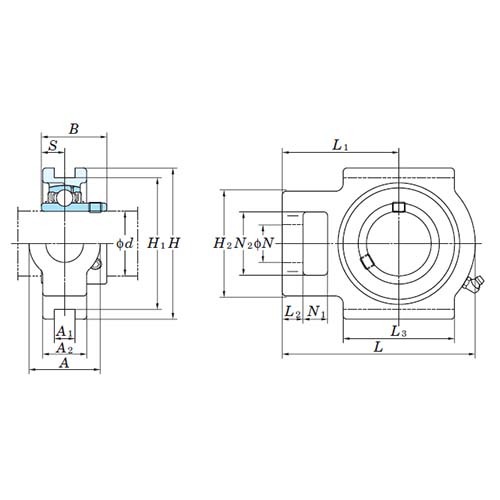

L1 (mm) 61

Factor Fo 13.2

Shaft Diameter (d) 12 - 20mm (1/2 - 3/4")

Shaft Diameter d (mm) 12

Static Load (c0r) kN 6.65

Dynamic Load (cr) kN 12.8

N2 (mm) 32

N1 (mm) 16

N (mm) 19

H1 (mm) 76

A2 (mm) 21

L (mm) 94

h2 (mm) 51

H (mm) 89

b (mm) 31

A (mm) 32

S (mm) 12.7

L3 (mm) 51

A1 (mm) 12

L2 (mm) 10

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Take-Up Block
