Light Two Bolt Flange Cast Iron Bearing Housing - FL200 - FYH

Description

Wide Inner Ring Housings (Light Two Bolt Flange Bearing Housing)

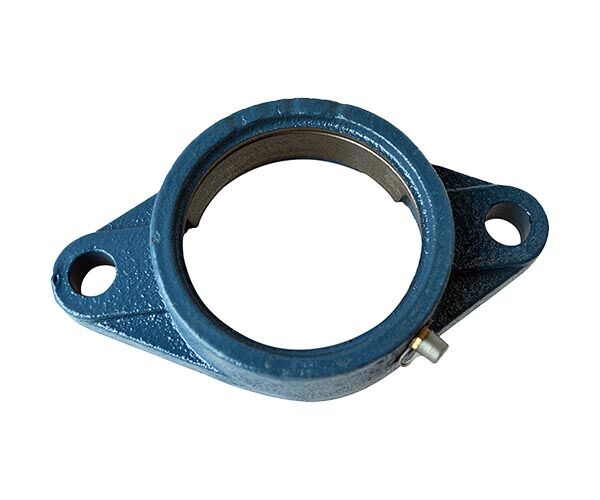

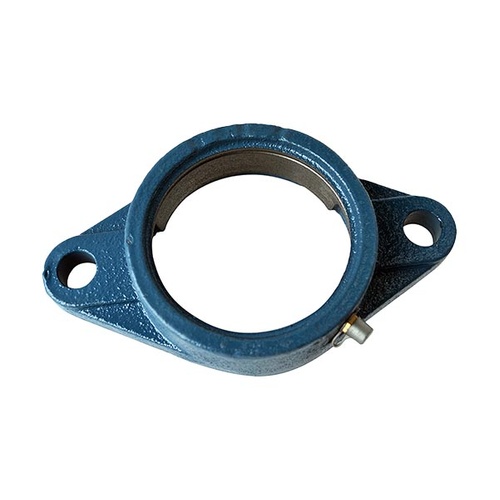

Two-bolt flange bearing Housing FL200 Series, two-bolt hole cast iron oval flange housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147651

Brand FYH

Model Number FL211/FYH

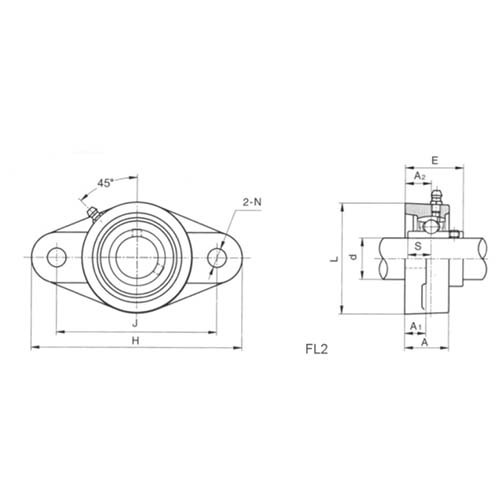

A1 (mm) 18

S (mm) 22.2

A (mm) 43

b (mm) 55.6

H (mm) 224

L (mm) 130

Factor Fo 14.4

Bolt Size (mm) M16

A0 (mm) 58.4

A2 (mm) 25

J (mm) 184

N (mm) 19

Dynamic Load (cr) kN 43.4

Static Load (c0r) kN 29.4

Shaft Diameter d (mm) 55

Shaft Diameter (d) 55mm (2 - 2 3/16")

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Two Bolt Flange

Calculate Shipping

Resources

Technical Data Sheet
