Specifications

AIMS SKU A0108505
Brand Llambrich
Model Number MT3B16
Barcode Number 8436004852703

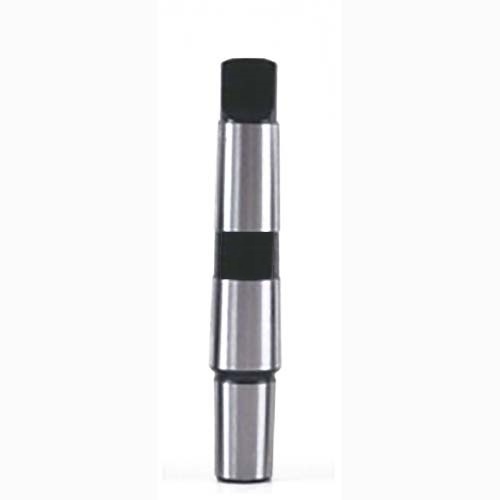

Morse Taper 3
Overall Length (mm) 127
Diameter 1 (D-1) mm 23.825
Diameter 2 (D-2) mm 20.2
Length 1 (L-1) mm 99
Diameter 3 (D-1) mm 15.733
Diameter 4 (D-2) mm 14.5
Length 2 (L-2) mm 24
DIN Taper B16
• Barcode 8436004852659
• Type Drill Chuck
