Description

***Special Order on A0108502. Contact AIMS for lead time***

Drill Chuck Arbor Morse Taper To DIN Taper

  • Ideal for use with custom tool land work holder designs.
  • Precision machined and ground for maximum performance.

Specifications

  • AIMS SKU A0108512
  • Brand Llambrich
  • Model Number MT5B18
  • Barcode Number 8436004855575

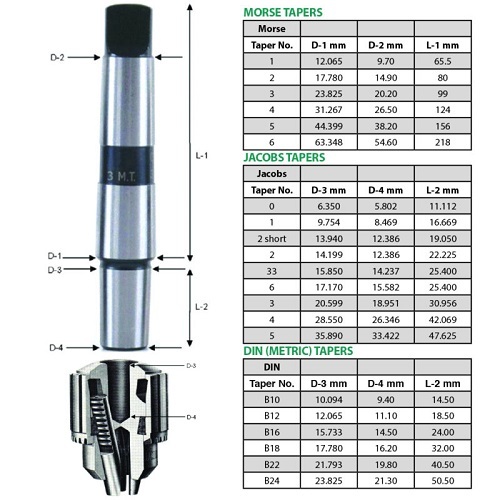

  • Morse Taper 5
  • Overall Length (mm) 192

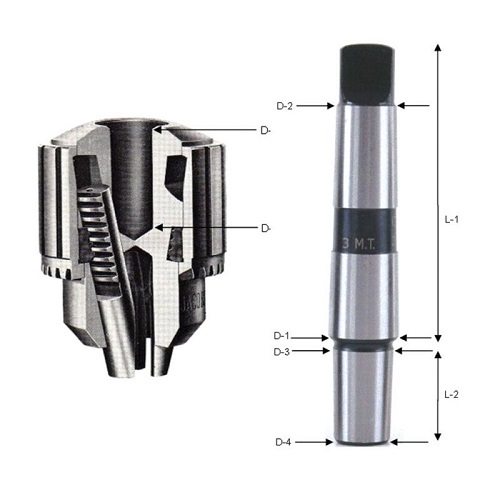

  • Diameter 1 (D-1) mm 44.399
  • Diameter 2 (D-2) mm 38.2
  • Length 1 (L-1) mm 156
  • Diameter 3 (D-1) mm 17.78
  • Diameter 4 (D-2) mm 16.2
  • Length 2 (L-2) mm 32
  • DIN Taper B18
  • Barcode 8436004852659
  • Type Drill Chuck
SKU: A0108512

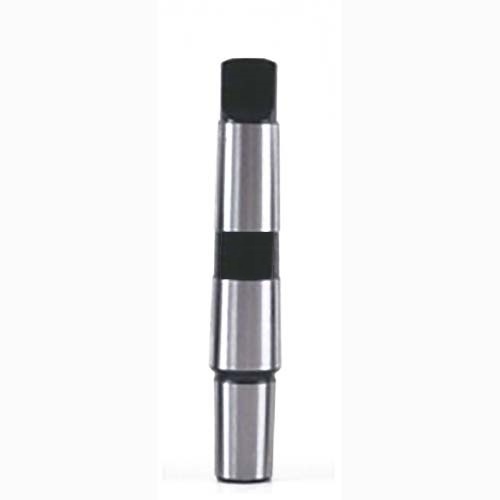

Llambrich Drill Chuck Arbor #5 MT - B18 DIN Taper

Drill Chuck Arbor Morse Taper To DIN Taper

$188.31
RRP $222.20
SAVE $33.89 (15%)
