Description

***Special Order on A0108502. Contact AIMS for lead time***

Drill Chuck Arbor Morse Taper To DIN Taper

  • Ideal for use with custom tool land work holder designs.
  • Precision machined and ground for maximum performance.

Specifications

  • AIMS SKU A0108497
  • Brand Llambrich
  • Model Number MT1B10
  • Barcode Number 8436004852659

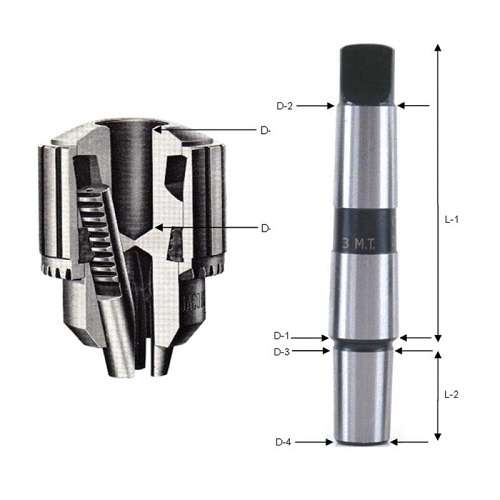

  • Morse Taper 1
  • Overall Length (mm) 85
  • Diameter 1 (D-1) mm 12.065
  • Diameter 2 (D-2) mm 9.7
  • Length 1 (L-1) mm 65.5
  • Diameter 3 (D-1) mm 10.094
  • Diameter 4 (D-2) mm 9.4
  • Length 2 (L-2) mm 14.5
  • DIN Taper B10
  • Barcode 8436004852659
  • Type Drill Chuck
SKU: A0108497

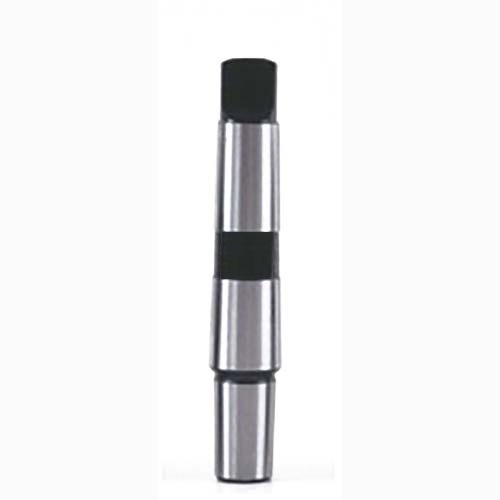

Llambrich Drill Chuck Arbor #1 MT - B10 DIN Taper

Drill Chuck Arbor Morse Taper To DIN Taper

$44.19
RRP $52.14
SAVE $7.95 (15%)

Choose a different size/variant

Calculate Shipping

Browse other products under

Tool Holder Accessories

Browse other products by

Llambrich
