Description

Locking Assembly (Self Locking Units Type 1)

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124473

Brand Reach

Size M6x18

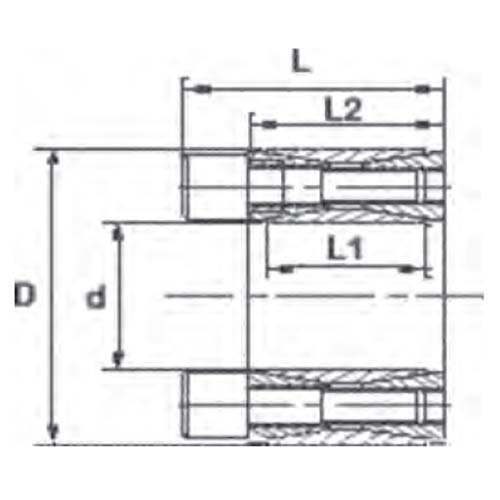

Dimensions (D) mm 50

Dimensions (L1) mm 17

Dimensions (L2) mm 20

Dimensions (L) mm 26

Transmissible Torque Kn 35

Transmissible Axial Force Nm 441

Shaft Surface Pressure N/mm2 245

Hub Surface Pressure N/mm2 123

Clamping Screws Din No. 9

Screws Tightening Torque Nm 14.9

Dimension (d) mm 25
