Description

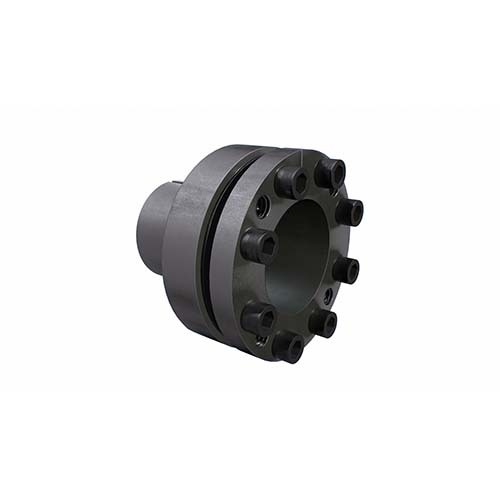

Locking Assembly - Self-Centering Unit Type 2, Flanged

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124507

Brand Reach

Dimensions (D) mm 15

Dimensions (L1) mm 12

Dimensions (L2) mm 21

Dimensions (L3) mm 24

Dimensions (L) mm 28

Dimensions (D2) mm 28

Dimensions (D1) mm 25

Passing Axis Pressure Ft Kn 10

Passing Torque Mt Nm 39

Axis P N/mm2 299

Hub P1 N/mm2 159

Locking Screw Quantity 4

Locking Screw Size M4x10

Locking Screw Locking Torque 5.2

Dimension (d) mm 8
