Long Series Bright Drill Bit Clam Shell (2506) - Metric - Bordo

Description

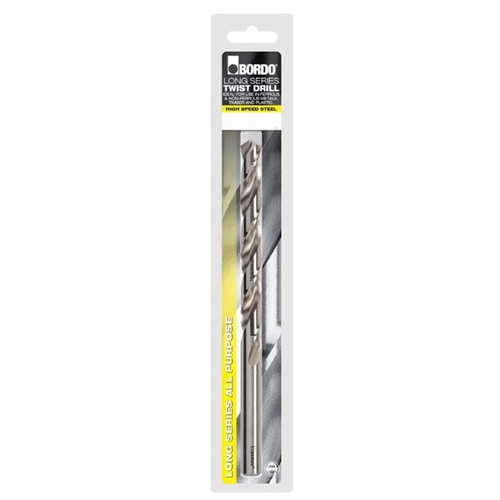

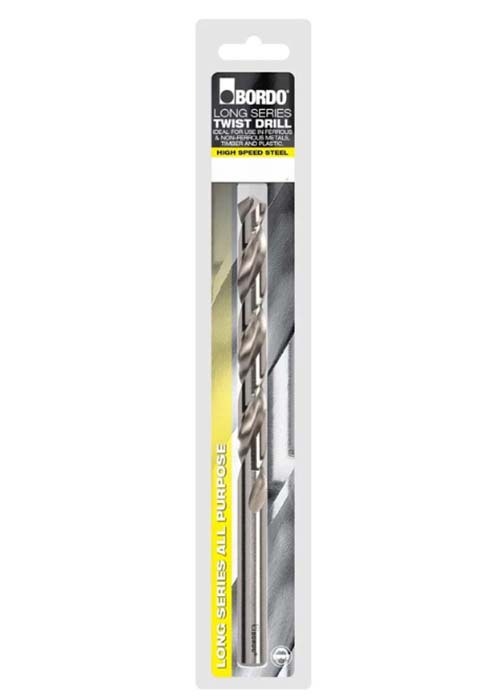

Bordo Long Series Bright Drill Bit Clam Shell (2506) - Metric

ANSI B94-11.
118° split point with 30° helix.
Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.

Specifications

AIMS SKU A0199649

Brand Bordo

Model Number 2506-1.00S

Barcode Number 9326518172475

Diameter (mm) 1

Flute Length (mm) 29

Overall Length (OAL) mm 57

Surface Finish Bright

Spindle Speed Stainless Steel RPM 3822

Spindle Speed Tool Steel RPM 5733

Spindle Speed Cast Iron RPM 7644

Spindle Speed Malleable Iron RPM 8600

Spindle Speed Med. Carbon Steel RPM 9555

Spindle Speed Aluminium/Brass RPM 19429

Spindle Speed Wood/Plastic RPM 28984

Flute Type 30° Helix

Type of Point 118° Split Point

Feed per Revolution (mm) 0.04

Spindle Speed Free Cutting Stl RPM 13696

Type Long Drill Bit
Material HSS
