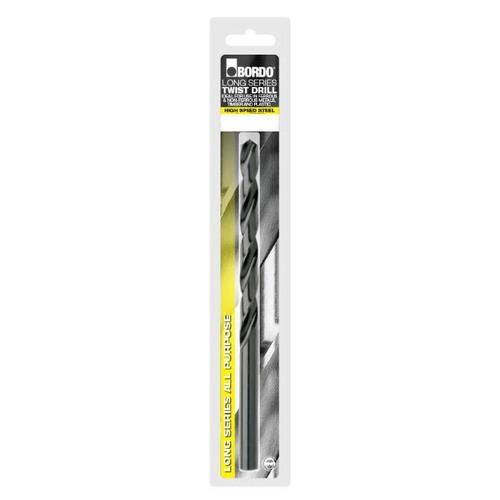

Bordo Long Series HSS Drill Bit Clam Shell (2501) - Metric

  • HSS Long Series Drill.
  • ANSI B94-11.
  • 118° chisel point with 30° helix.
  • Chisel point is suitable for general purpose drilling.
  • Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
  • This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
  • Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.

Specifications

  • AIMS SKU A0199701
  • Brand Bordo
  • Model Number 2501-1.00S
  • Barcode Number 9326518018964
  • Diameter (mm) 1
  • Flute Length (mm) 29
  • Overall Length (OAL) mm 57
  • Surface Finish Black
  • Spindle Speed Stainless Steel RPM 3822
  • Spindle Speed Tool Steel RPM 5733
  • Spindle Speed Cast Iron RPM 7644
  • Spindle Speed Malleable Iron RPM 8600
  • Spindle Speed Med. Carbon Steel RPM 9555
  • Spindle Speed Aluminium/Brass RPM 19429
  • Spindle Speed Wood/Plastic RPM 28984
  • Flute Type 30° Helix
  • Type of Point 118° Std Chisel
  • Feed per Revolution (mm) 0.04
  • Spindle Speed Free Cutting Stl RPM 13696
  • Type Long Drill Bit
  • Material HSS
SKU: A0199701

Bordo 1mm Long Series HSS Black Drill Bit (Clam Shell) - 2501-1.00S

Long Series HSS Drill Bit Clam Shell (2501) - Metric

$7.63
RRP $16.26
SAVE $8.63 (53%)
