Specifications

AIMS SKU A0134743
Length (mm) 190
Pitch (mm) 1.5
Size M10
Stress Area (mm²) 58
Minimum Tensile Stress (mpa Or N/mm²) 400
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Minimum Proof Load (kn) 13.1
Minimum Ultimate Tensile Load (kn) 23.2
Core Area (mm) 52.3
Tensile Strength (kn) 52.3
Proof Strength (kn) 23.2
Shear Strength (kn) 13.1
Recommended Tightening Torque Hdg (nm) 11.9

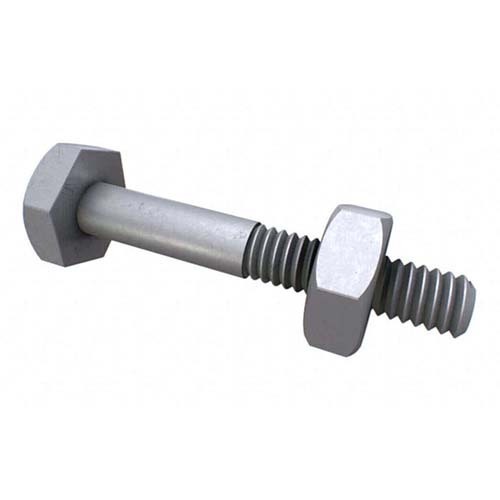

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
