Description

**Image is for Illustration Purposes Only - Thread Length May NOT be full length. Please contact to confirm thread length if it is critical for you**

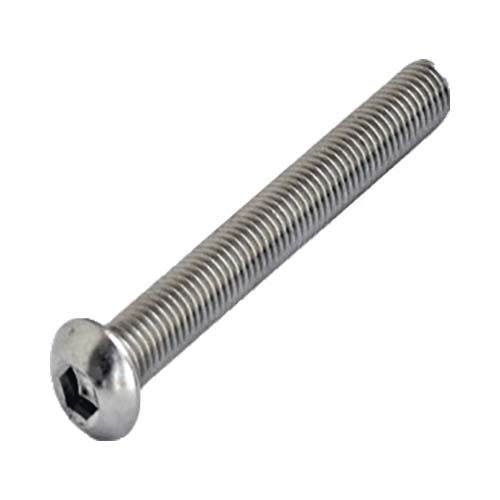

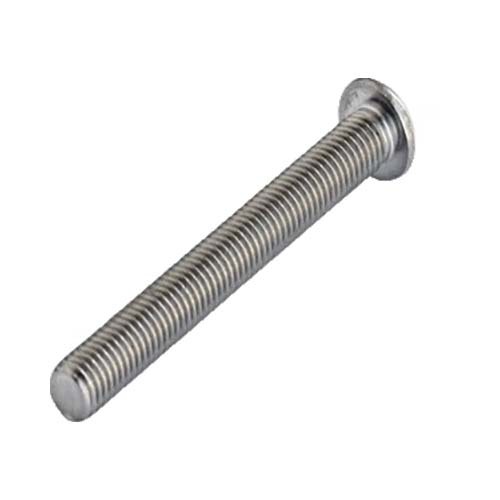

Button Socket Head Screw 316 Stainless Steel

Metric.
ISO 7380.
316 Stainless Steel.

About Stainless Steel and Button Head Socket Screw

Stainless steel offers good corrosion resistance, making it suitable for outdoor and marine applications.
Button Head Socket Screws are designed for light fastening applications.
Button Head Socket Screw is used when a wider bearing surface or smoother, finished appearance is desired. Not recommended for critical, high-strength applications.

Specifications

AIMS SKU A0072263

Fastener Size M12

Fastener Length 25 mm

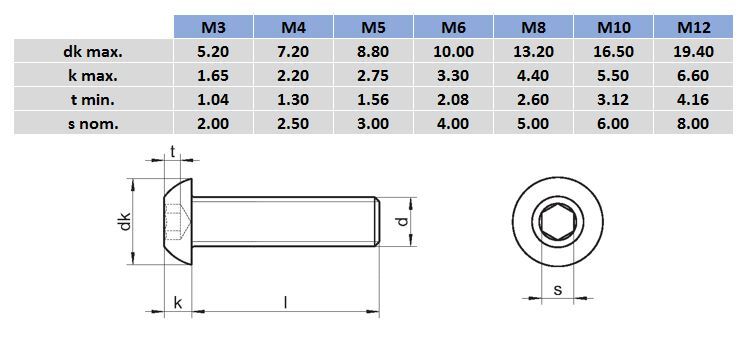

dk max. (mm) 19.4

k max. (mm) 6.6

t min. (mm) 4.16

s nom. (mm) 8

Type Button Head Screw
System of Measurement Metric
Material 316 Stainless Steel
Drive Type Socket (Allen Key)
High Tensile No
