Specifications

AIMS SKU A0074839
Fastener Size M20
Fastener Length 170 mm
Bore Hole (mm) 170

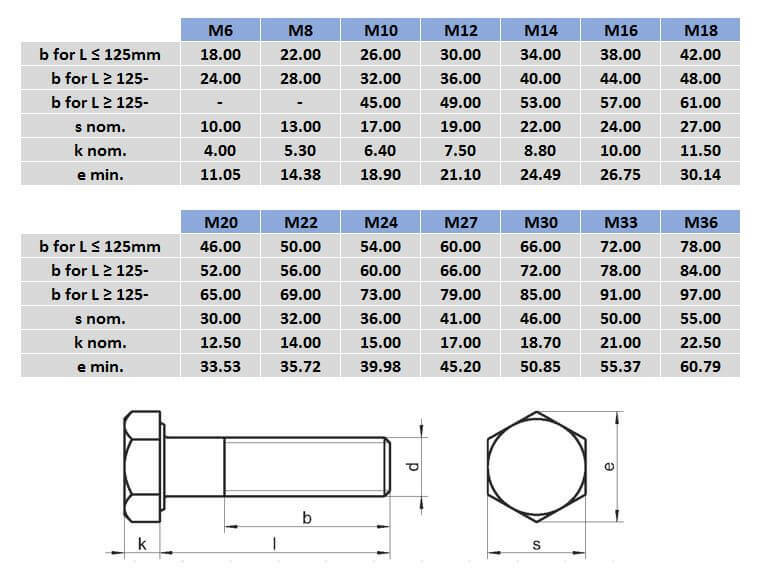

Length (L) M20
b for L < 125mm 46
b for L > 125-200mm 52
s nom. 30
k nom. 12.5
e min. 33.53
b for L > 200mm 65

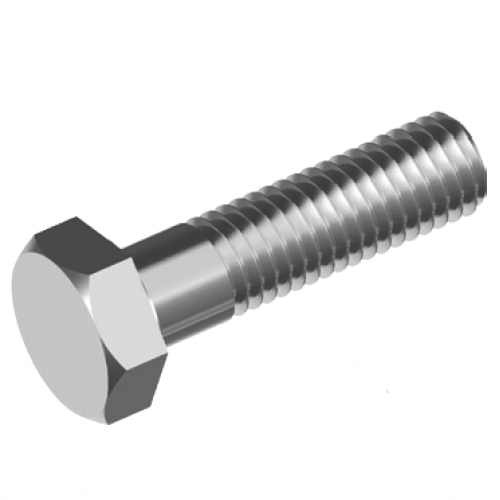

• Type Hex Bolt
• System of Measurement Metric
• Material 316 Stainless Steel
• Drive Type Hex Head
• High Tensile No
