Specifications

AIMS SKU A0074850
Fastener Size M22
Fastener Length 90 mm
Bore Hole (mm) 90

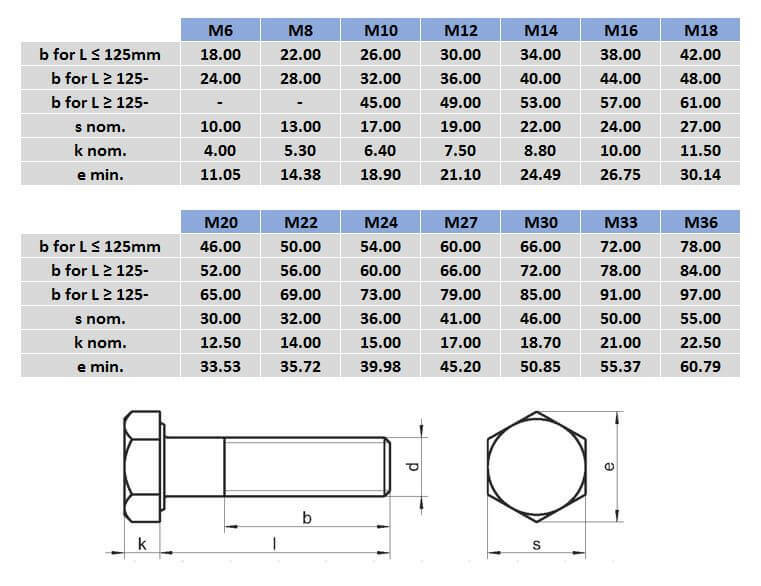

Length (L) M22
b for L < 125mm 50
b for L > 125-200mm 56
s nom. 32
k nom. 14
e min. 35.72
b for L > 200mm 69

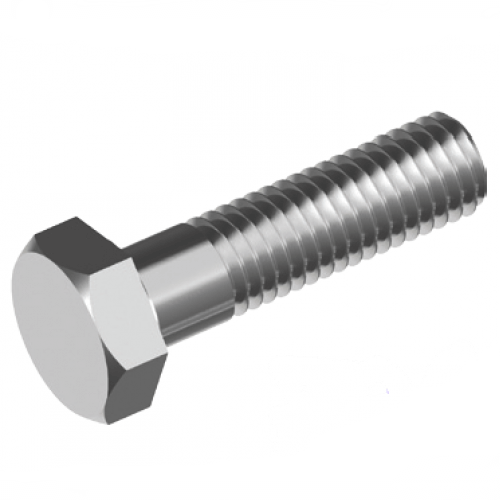

• Type Hex Bolt
• System of Measurement Metric
• Material 316 Stainless Steel
• Drive Type Hex Head
• High Tensile No
