Description

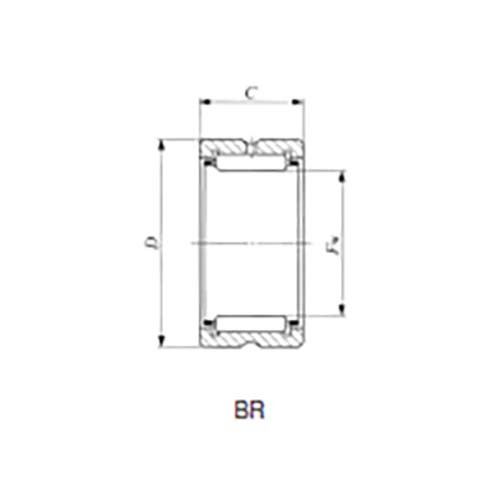

Machine Type Needle Roller Bearing w/o Inner Ring - BR

  • Inch series.
  • Without inner ring.

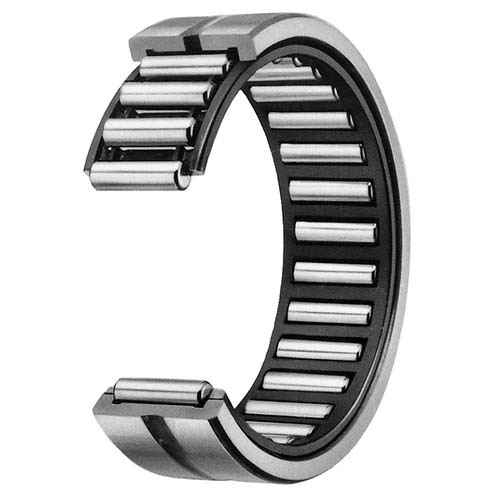

About Machined Type Needle Roller Bearing

  • Machined Type Needle Roller Bearings have an outer ring made by machining, heat treatment, and grinding.
  • The outer ring has stable high rigidity and can be easily used even for light alloy housings.
  • These bearings are available in various types and optimally selectable for different conditions such as heavy loads, high-speed rotation and low-speed rotation.
  • They are most suitable for general-purpose applications

About Structure and Features

  • Machined Type Needle Roller Bearings are bearings with a low sectional height and large load ratings.
  • The outer ring has high rigidity and can easily be used even for light alloy housings.
  • These bearings are available in metric series and inch series, both of which have the caged type and the full complement type.
  • It is therefore possible to select a suitable bearing for use under various conditions such as heavy loads and high-speed or low-speed rotations.
  • In addition, there are bearings with and without an inner ring.
  • As the type without inner ring uses a shaft as the raceway surface, a compact design is possible

Specifications

  • AIMS SKU A0155228
  • Brand IKO
  • Model Number BR101812/IKO
  • Outside Diameter 1 1/8 in
  • Width (mm) 19.05
  • Inside Diameter (i.d) mm 15.875
  • Outside Diameter (in) 1 1/8
  • Width 3/4 in
  • Mass (g) 49
  • Inside Diameter (in) 5/8
  • Bore Diameter 5/8 in

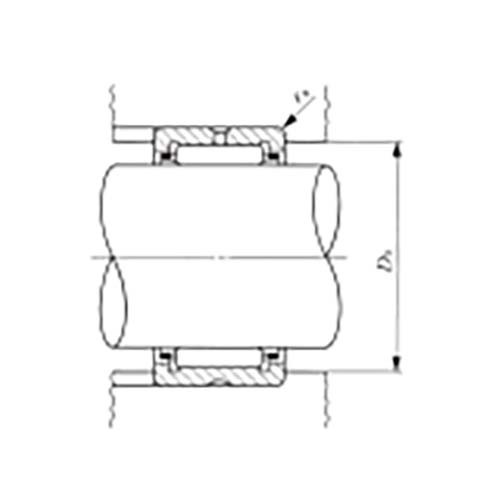

  • da Max. 24.5
  • Basic Dynamic Load Rating C (N) 18900
  • Basic Static Load Rating C0 (N) 19700
  • Allowable Rotational Speed (rpm) 25000
  • Shaft Diameter d (mm) 15.875
  • Width (in) 3/4
  • rasmax 0.6
  • Shaft Diameter d (in) 5/8
  • Type Needle Roller Bearing
  • Series Type Inch Series (BR)
SKU: A0155228

IKO Machined Needle Roller Bearing w/o Inner Ring 5/8 x 1-1/8 x 3/4"

Machine Needle Roller Bearing w/o Inner Ring - BR101812
