Description

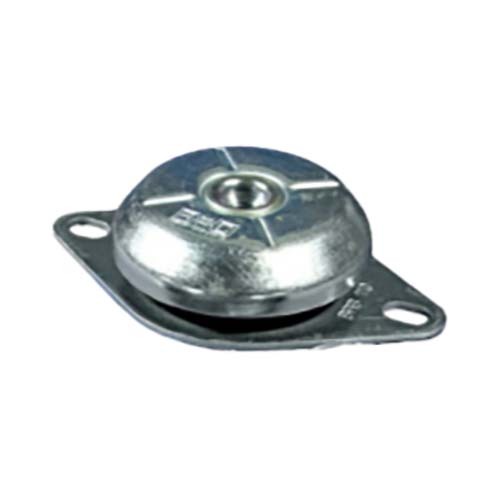

Mackay BRB Flange Isolator - Large

  • The BRB type mounts are anti vibration elements which work the rubber in shear and compression. Their tall height profiles produce large deflections, low natural frequencies, and excellent vibration isolation results. This range of mounts is suitable for applications where high vibration isolation in the 85-95% range is a priority.

Technical Characteristics

  • The top metal hood protects the rubber from the Ozone, UV rays, diesel or oils which damage the rubber.
  • The metal parts have a suitable anticorrosive treatment for outdoor applications.
  • They have an interlocking metal component that provides a fail-safe protection for mobile applications. This device limits the ascending vertical movement when the mounting is submitted to shocks at traction.
  • The mounts are clearly identified, as the bases are engraved with the type and hardness, which makes it possible to easily recognise the piece even after several years of use.
  • The hood has a cross stamped on the top, which enhances its rigidity on mobile applications and also improves the evacuation of oils or liquids that precipitate onto it.

Applications

  • Suitable for the isolation of mobile rotating machines which are exposed to axial and radial shocks, dripping, oil diesel or exposure to the weather.
  • Particularly interesting for applications where a high level of vibration isolation is required.

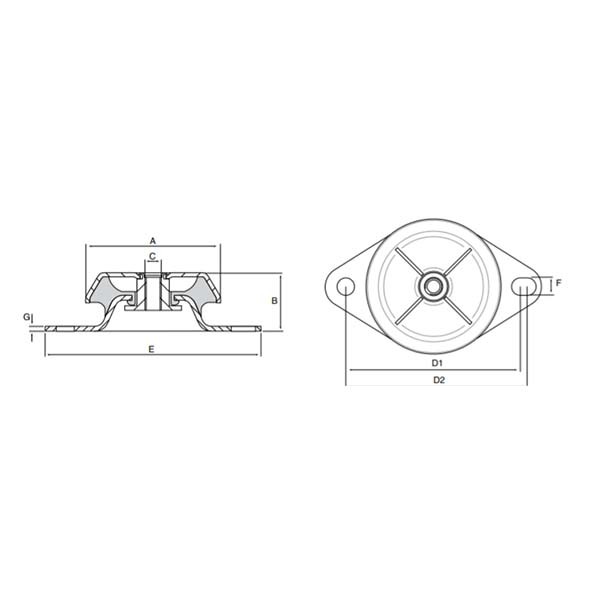

Specifications

  • AIMS SKU A0166334
  • Brand Mackay
  • Model Number M135275
  • Barcode Number 9313699023573
  • Thread Size M12
  • Weight (kg) 0.39
  • Length X Height (mm) 130 x 35
  • Hole Diameter 11 mm
  • Durometer 40
  • Static Deflection (mm) 4
  • Head Diameter (mm) 83
  • D2 (max) 110 mm
  • D1 (min) 108 mm
  • Plate Thickness (mm) 3
  • Load (kg) 80
SKU: A0166334

Mackay M135275 BRB Flange Isolator Large 130 x 35mm - 80kg

Mackay M135275 BRB Flange Isolator - Large

$203.45
