Mackay Conical Bonded Buffer

Description

Mackay Conical Bonded Buffer

For inexpensive and effective control of machinery vibration, shock and acoustic noise.
These buffers are equally adaptable when controlling impact or when used as machine feet; they also may be used as snubbing rubbers when excessive shock loads are encountered in resiliently mounted equipment.

Features

Designed specifically to control impact and torque reaction loads.
Built to limit movement and stabilize equipment at critical frequencies.
A rugged rubber bonded to metal unit ensures simplicity of application and ease of installation.

Specifications

AIMS SKU A0170766

Brand Mackay

Model Number M173

Barcode Number 9313699028592

Static Deflection (mm) 8

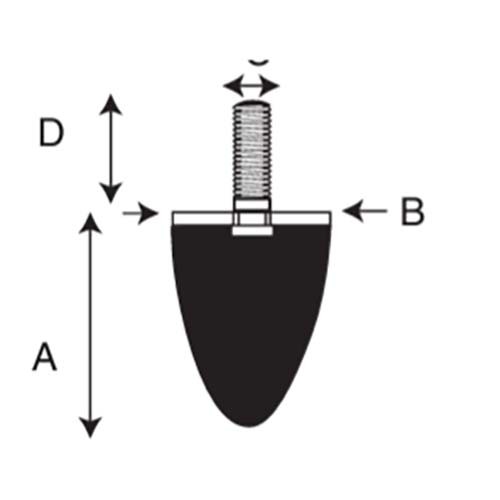

Dimension A (mm) 65

Dimension B (mm) 51

Dimension D (mm) 16

Dimension C 3/8 UNF

Static Load (kg) 75

Buffing Deflection (mm) 20

Buffing Load 250 kg

Type Conical Bonded Buffer
Material Rubber/Metal

Calculate Shipping

Resources

Technical Data Sheet

Browse other products under

Anti-Vibration Mounts
