Mackay Dome Mount Isolator

Description

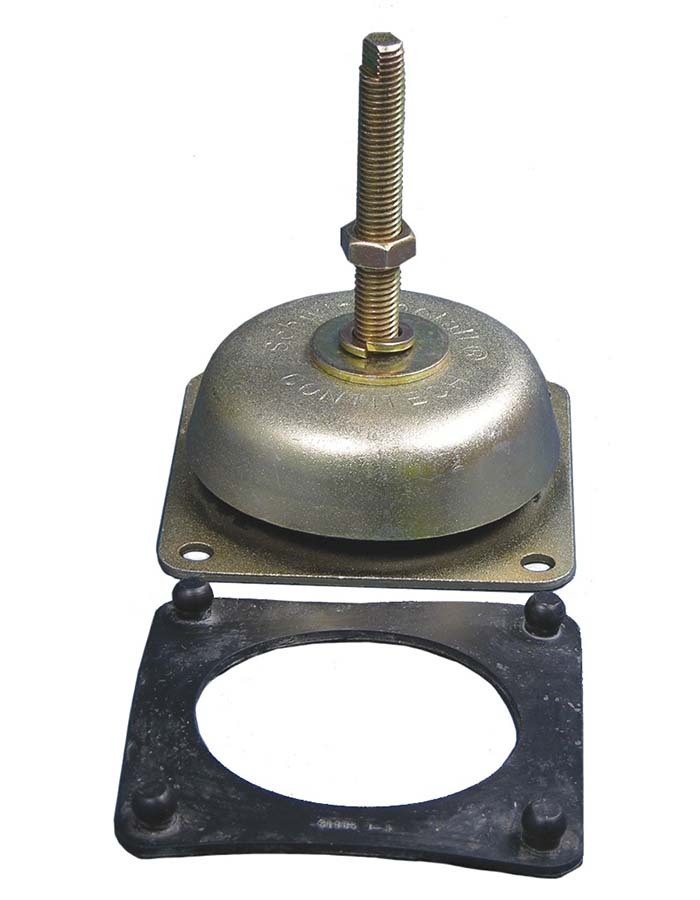

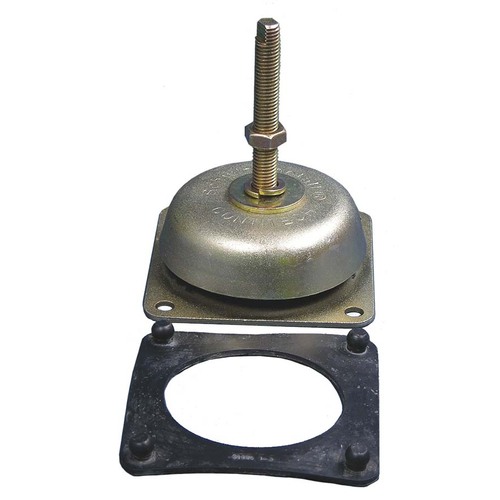

Mackay Dome Mount Isolator

Offers increased protection to the rubber in applications where this is considered necessary as well as the metal components being galvanised to protect against corrosion.
Provide excellent isolation efficiency with equal load capacity in both compression and shear.
Available with a levelling spindle to allow effortless level adjustment so that the height of machines can be set precisely.
Can be used without being anchored to the floor by the use of the rubber underlay which is resistant to oil.
Suggested that before mounting the underlay, the studs are moistened with soapy water.
Available in three elastomer hardnesses: Duro 40, 55 and 65 while providing load capacity from 50kg to 500kg

Applications

Suitable for applications where restraint in the horizontal position is required but good isolation is needed in the vertical plane.

Specifications

AIMS SKU A0166902

Brand Mackay

Model Number M5105854040

Barcode Number 9313699024570

Thread Size M12

Weight (kg) 0.7

Hole Diameter 9 mm

Length in (mm) 108

Height Size (mm) 40

Centre To Centre 88 mm

Duro 40

Plate Thickness (mm) 3

Compression Deflection (mm) 1.11 - 3.82

Compression load (kg) 50 - 200

Type Dome Mount Isolator

Calculate Shipping

Resources

Mackay Industrial Rubber Technology Catalogue
