Mackay Dual Compression Mobile Isolator

Description

***Isolator Red Load 200kg has a lead time 4 Weeks. Contact AIMS for assistance***

***M189 sold separately. Contact AIMS for assistance***

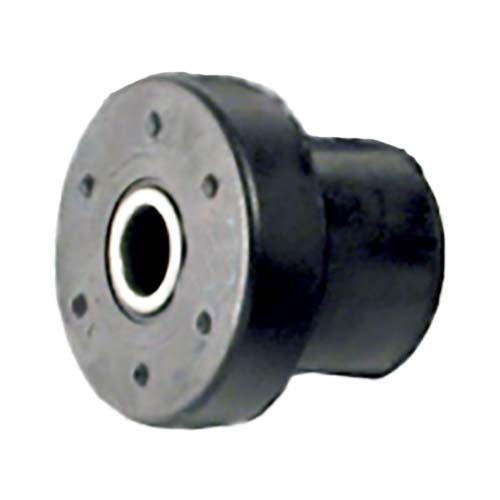

Mackay Dual Compression Mobile Isolator

Engineered to isolate vibration, control shock, and reduce noise due to structure borne vibrations.
High load carrying capacity with improved multi-directional resilience and built in rebound protection.
The isolators give versatility for protecting the equipment and improving operator comfort for all types of cabins and vehicles.

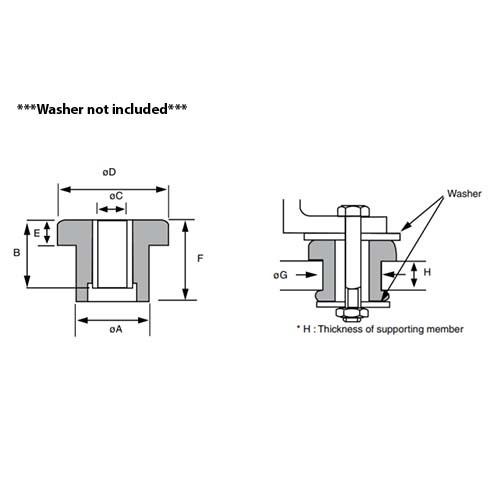

Their engineered design balances stability with resilience to withstand high static and shock loading as well as providing fail safe assembly when installed with suitable washers. Washers not included.

Also available: M189 Mechanical and chemical protection shield. A shield to protect isolators from mechanical and chemical attacks. Sold separately. Contact AIMS for assistance.

Specifications

AIMS SKU A0166949

Brand Mackay

Model Number M53919175

Barcode Number 9313699028851

Colour Blue

Weight (kg) 0.2

Hole Diameter 16

Durometer 75

Head Diameter (mm) 63.5

Height Size (mm) 51

Deflection (mm) 2

Base Diameter (mm) 41.1

Static Load 500

Head Thickness 15.7

Supporting Member Diameter (mm) 41.1

Supporting Member Thickness (mm) 19

Type Dual Compression Mobile Isolator

Calculate Shipping

Resources

Mackay Industrial Rubber Technology Catalogue
