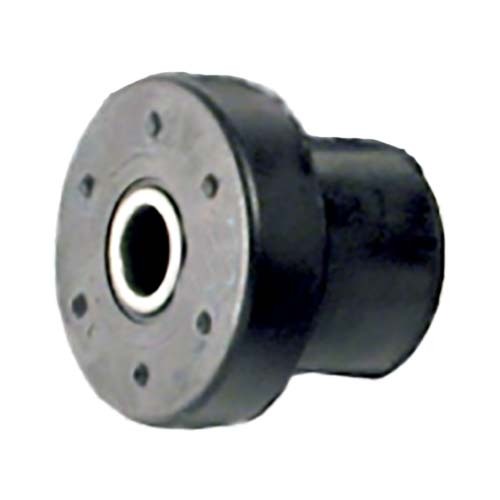

Mackay Dual Compression Mobile Isolator With Snubbing Washer

Description

***M189 sold separately. Contact AIMS for assistance***

Mackay Dual Compression Mobile Isolator With Snubbing Washer

Engineered to isolate vibration, control shock and reduce noise due to structure-borne vibrations.
High load-carrying capacity with improved multi-directional resilience and built-in rebound protection.
The isolators give versatility for protecting the equipment and improving operator comfort for all types of cabins and vehicles.
Their engineered design balances stability with resilience to withstand high static and shock loading as well as providing fail-safe assembly when installed with suitable washers.
Supplied with snubbing washer (M16911).

Also available:

M189 Mechanical and chemical protection shield. A shield to protect isolators from mechanical and chemical attacks. Sold separately.

Specifications

AIMS SKU A0166958

Brand Mackay

Model Number M16940K

Barcode Number 9313699029506

Weight (kg) 0.1

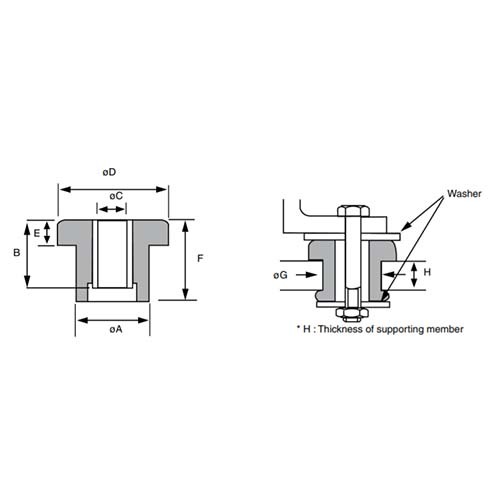

Hole Diameter 16

Durometer 40

Head Diameter (mm) 50

Height Size (mm) 41.2

Deflection (mm) 1.5

Colour Code Red

Base Diameter (mm) 34

Static Load 100 kg

Head Thickness 13

Supporting Member Diameter (mm) 34

Supporting Member Thickness (mm) 16

Type Dual Compression Mobile Isolator
