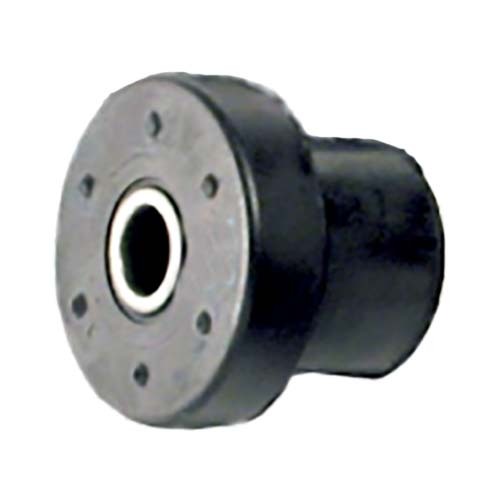

Mackay Dual Compression Mobile Isolator Without Snubbing Washer

Description

***M16911 and M189 sold separately. Contact AIMS for assistance***

Mackay Dual Compression Mobile Isolator Without Snubbing Washer

Engineered to isolate vibration, control shock and reduce noise due to structure-borne vibrations.
High load-carrying capacity with improved multi-directional resilience and built-in rebound protection.
The isolators give versatility for protecting the equipment and improving operator comfort for all types of cabins and vehicles.
Their engineered design balances stability with resilience to withstand high static and shock loading as well as providing fail-safe assembly when installed with suitable washers.
A snubbing washer (M16911) is not included, but you may purchase it separately. Contact AIMS for assistance.

Also available:

M189 Mechanical and chemical protection shield. A shield to protect isolators from mechanical and chemical attacks. Sold separately.

Specifications

AIMS SKU A0166961

Brand Mackay

Model Number M16940

Barcode Number 9313699024082

Weight (kg) 0.1

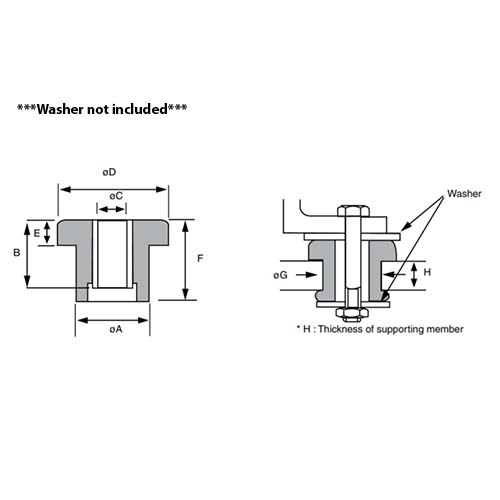

Hole Diameter 16

Durometer 40

Head Diameter (mm) 50

Height Size (mm) 41.2

Deflection (mm) 1.5

Colour Code Red

Base Diameter (mm) 34

Static Load 100 kg

Head Thickness 13

Supporting Member Diameter (mm) 34

Supporting Member Thickness (mm) 16

Type Dual Compression Mobile Isolator
