Specifications

AIMS SKU A0171043
Brand Mackay
Model Number M154005
Barcode Number 9313699046282
Weight (kg) 0.034

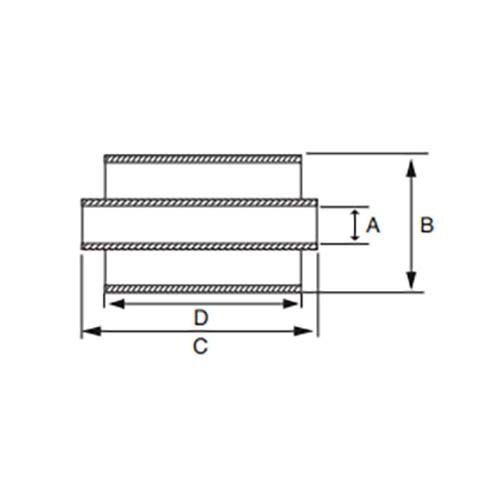

Nominal Dimension A (mm) 10
Nominal Dimensions (D x C x B) mm 25 x 30 x 22
Torsion MT Max (Nm) 7
Angle Torsion Max (Deg) 10
Axial Load Max (N) 500
Axial Load Max (mm) 0.9
Radial Load FR Max (N) 1875
Radial Load SR Max (mm) 0.25

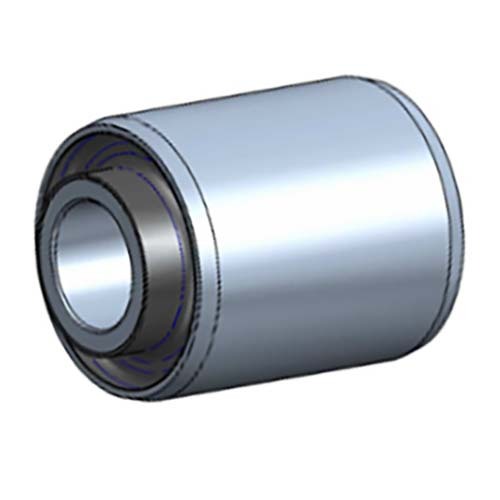

• Type Flexible Bearing
• Material Steel / Rubber
