***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

Mackay Heavy Duty Flange Isolator 304 Stainless Steel

• These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
• Loads can be suspended as well as supported.
• The isolators can be fastened to the floor or other base
• Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.

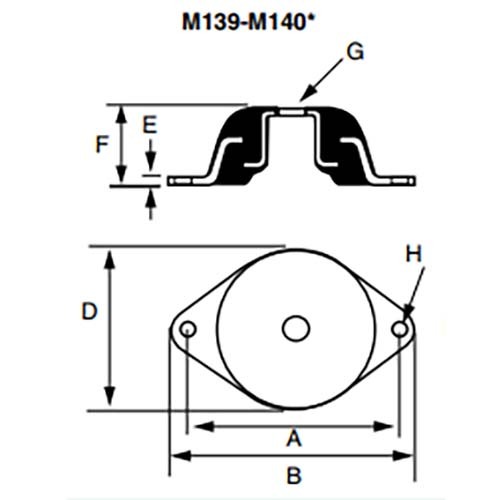

Dimensions

• Compression Load (kg): 350 - 500
• Compression Deflection (mm): 3.3 - 4.7
• Shear Load (kg): 160 - 200
• Shear Deflection (mm): 3.6 - 4.4
• Centre to Centre (mm): 110
• Length (mm): 141
• Width (mm): 83
• Plate Thickness (mm): 3
• Height Size (mm): 41
• Thread Size (inc): 17/32
• Hole Diameter (mm): 13.5
• Weight (kg): 0.4
• Durometer: 60
