Description

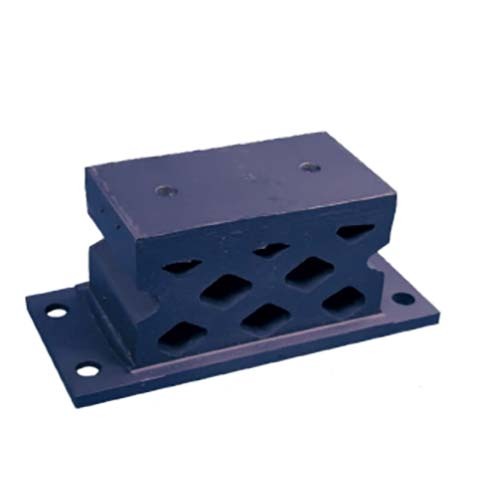

Mackay Hy-Deflection Isolator

  • Hy-Deflection Isolators provide flexible support for mechanical apparatus which is subject to intermittent or continuous, low frequency, high amplitude vibration.
  • The design provides soft spring rate quality in all directions with exceptional horizontal stability.

Applications:

  • Hy-Deflection Isolators are traditionally used in equipment where a high degree of vibration isolation is required, such as;
    • Vibrating Screens
    • Vibrating Conveyors
    • Generators
    • Industrial Refrigeration Units
    • Air Conditioning Compressors
    • Industrial Pumping Equipment and Shipboard Applications
  • The ease of installation makes it suitable for numerous other applications

Specifications

  • AIMS SKU A0166418
  • Brand Mackay
  • Model Number M18840
  • Barcode Number 9313699024907
  • Top Width (mm) 116
  • Weight (kg) 10
  • Width 140
  • Length in (mm) 305
  • Height Size (mm) 125
  • Plate Thickness (mm) 12
  • Compression Load 50 - 350 kg
  • Compression Deflection (mm) 4 - 25
  • Shear Load (kg) 25 - 125
  • Shear Deflection (kg) 5 - 25
  • Top Length 210
  • Base Centre To Centre 276
  • Top Centre To Centre 121
SKU: A0166418 On Sale

Mackay M18840 Hy-Deflection Isolator 305 x 140 x 125mm - 50 to 350kg

Mackay Hy-Deflection Isolator

$657.69
$739.86
