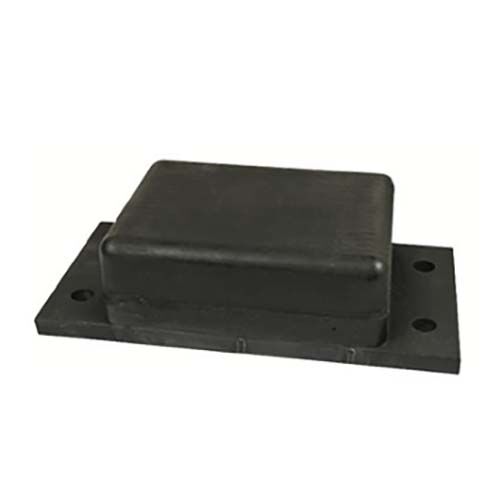

Mackay Impact Buffer Vibration Isolator

Description

Mackay Impact Buffer Vibration Isolator

About Bonded Rubber Buffers

Being the go-to bonded rubber buffers suppliers in Australia makes it a responsibility for Mackay Australia to create bonded rubber buffers that fit in seamlessly and assist in the economic design of equipment by virtue of reduced shock transmission.
A prime application of our bonded rubber buffers is in vehicle suspension systems to aid in effective stiffing under increasing loads.
First choose the best cushion for the application and then choose the desired stud combination.

Specifications

AIMS SKU A0210127

Brand Mackay

Model Number MA5921455

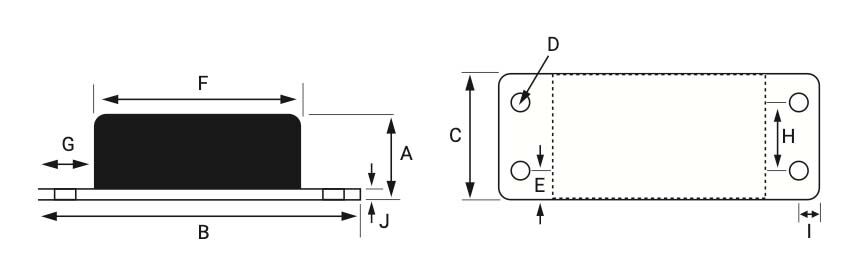

C (mm) 120

A (mm) 70

F (mm) 150

E (mm) 30

b (mm) 250

D (mm) 15

g (mm) 50

H (mm) 60

J (mm) 10

Weight (kgs) 3.4

I (mm) 25

Def - Static (mm) 9

Def - Buffing (mm) 24

Static x Buffing Load (kg) 1300 x 6000

Type Impact Buffer
