Description

***Height Adjuster sold separately. Contact AIMS for assistance.***

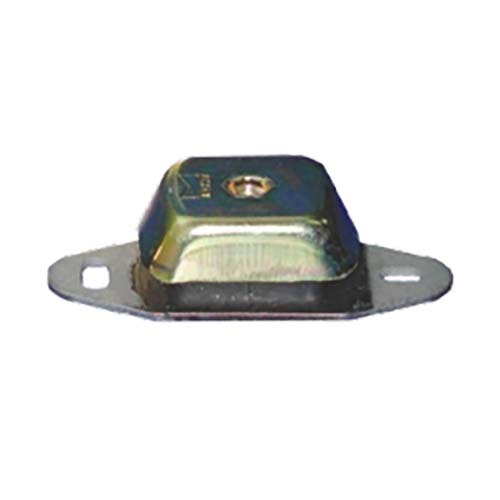

Mackay Isomount Isolator

  • Isomounts are general-purpose vibration isolators suitable for mobile and static equipment installations.
  • Available in three different sizes.
  • Suitable for Marine applications.

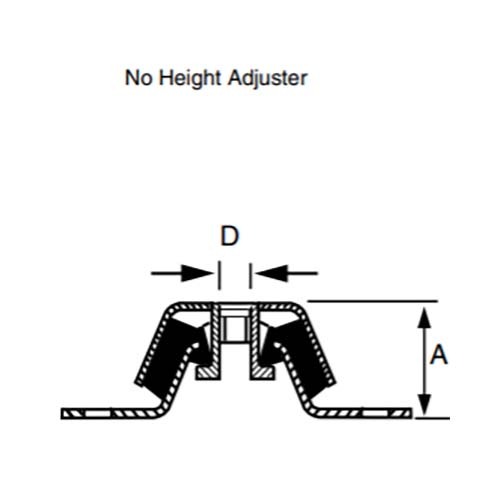

  • Isomounts have a mechanically galvanized base and come with a choice of rubber hardnesses, they can also be supplied with two types of specialist height adjusters and a mechanically galvanised base. Height Adjuster sold separately. Contact AIMS for assistance.
  • Isomount isolators are suitable for operation under all types of engines.

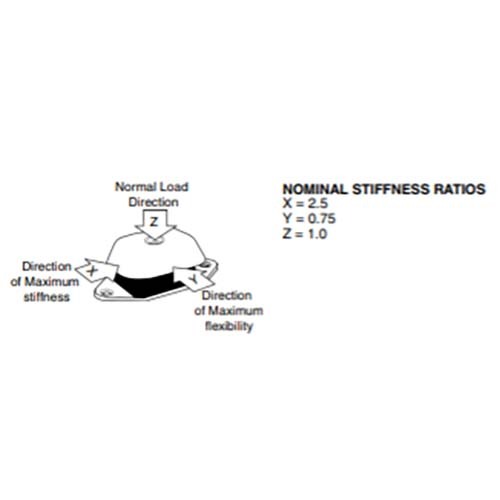

  • They offer 3-way control of engine movement with excellent isolation efficiency. Maximum use of this 3-way control when the isomount isolators are used as engine supports can be obtained by arranging the isolator with their maximum flexibility (Y) at right angles to the engine crankshaft and maximum stiffness (X) in line with the crankshaft. Using the isolators in this manner also has the advantage in marine applications of providing isolation against propeller thrust.
  • The Isomount range also features bump and rebound control which prevents excessive movement under shock loads.

Specifications

  • AIMS SKU A0166373
  • Brand Mackay
  • Model Number M240045
  • Barcode Number 9313699023160
  • Thread Size M20
  • Size Large
  • Item Type 1
  • Weight (kg) 2.2
  • Durometer 45
  • Width 112 mm
  • Length in (mm) 228
  • Height Size (mm) 68
  • Centre To Centre 182

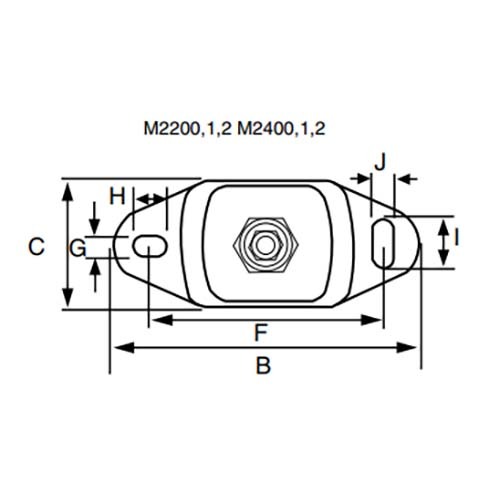

  • Horizontal Diameter (G) mm 18
  • Vertical Diameter (H) mm 26
  • Horizontal Diameter (I) mm 34
  • Vertical Diameter (J) mm 18
  • Maximum Load Without Thrust (kg) 355
  • Maximum Load With Thrust (kg) 250
  • Deflection (mm) 5
SKU: A0166373

Mackay M240045 Isomount Isolator Large 228 x 112 x 68mm - 355kg

Mackay Isomount Isolator Large

$544.17
